Sesame Buis Ø29 316 2x slang

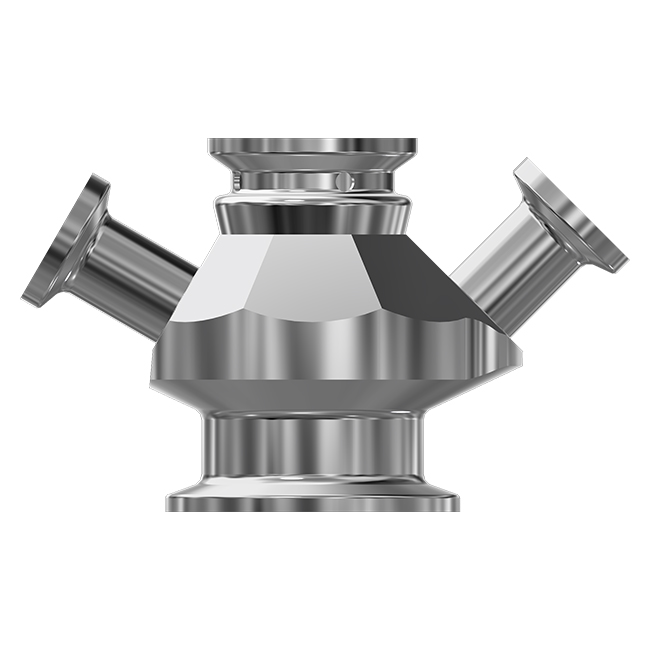

Innovative Dual-Seat Sampling Valve
Introducing the KEOFITT Sesame Sampling Valve, the latest innovation from KEOFITT®. This patented valve stands out in the market with its exceptional dual-seat design, providing optimal conditions for CIP (Clean-In-Place) and SIP (Sterilize-In-Place). It also includes steam supply control, completely removing the steam inlet dead space found in other models.
The valve's standout feature is its membrane design, which incorporates two distinct seats: one for sampling and one for sterilizing/sanitizing. The second seat is positioned to seal off the valve head, allowing for the sterilization of the sealing area along with the valve chamber before each sampling. This design eliminates the need for a separate inlet, thereby removing any dead space during sampling.
The KEOFITT® Sesame valve is ideal for sampling products with low to medium viscosity, ranging from 0-1,000 cP, and can handle particles up to 3 mm in diameter.
This double-seat Sesame™ valve is versatile, suitable for various industries such as breweries, dairies, pharmaceuticals, and biotechnology. It can be used with a wide array of products, including:
- Medical Solutions
- Filtered and Unfiltered Beer
- Creams and Lotions
- Unprocessed Milk
- Perfume
| Artikelnr. | Omschrijving | Onderdeel | Aansluiting | I/O aansluitingen | Bediening | Voorraad |
|---|---|---|---|---|---|---|
|
32438949
|
KEOFITT monsternamekraan huis
Type Sesame - Tank Ø38mm
I/O connection(s):
2x Slangtule (Snelkoppeling)
1.4404 (316L)
Zonder bediening
|
Ventielhuis
|
Las
|
Slangtule (Snelkoppeling)
|
|
|
|
KE890005
|
KEOFITT monsternamekraan huis
Type Sesame - Clamp 2"
I/O connection(s):
2x Clamp 1/2" Ø25mm
1.4404 (316L)
Zonder bediening
|
Ventielhuis
|
Clamp
|
Clamp 1/2" Ø25
|
|
|
|
KE890006
|
KEOFITT monsternamekraan huis
Type Sesame - Tank Ø38mm
I/O connection(s):
2x Clamp 1/2" Ø25mm
1.4404 (316L)
Zonder bediening
|
Ventielhuis
|
Las
|
Clamp 1/2" Ø25
|
|
|
|
KE890008
|
Onderdeel monstername kraan KEOFITT
Type Sesame - VARIVENT Ø50 316L
I/O connection(s):
2x Slangtule (Snelkoppeling)
1.4404 (316L)
Zonder bediening
|
|
Varivent
|
|
|
|
|
KE890009
|
KEOFITT monsternamekraan huis
Type Sesame - Varivent Ø68
I/O connection(s):
2x Slangtule (Snelkoppeling)
1.4404 (316L)
Zonder bediening
|
Ventielhuis
|
Varivent
|
Slangtule (Snelkoppeling)
|
|
|
|
KE890010
|
KEOFITT monsternamekraan huis
Type Sesame - Buis Ø25mm
I/O connection(s):
2x Clamp 1/2" Ø25mm
1.4404 (316L)
Zonder bediening
|
Ventielhuis
|
Clamp
|
Clamp 1/2" Ø25
|
|
|
|
KE890011
|
KEOFITT monsternamekraan huis
Type Sesame - Buis Ø29mm
I/O connection(s):
2x Slangtule (Snelkoppeling)
1.4404 (316L)
Zonder bediening
|
Ventielhuis
|
Las
|
Slangtule (Snelkoppeling)
|
|
|
|
KE890021
|
KEOFITT monsternamekraan huis
Type Sesame - Clamp 1" - 1,5"
I/O connection(s):
2x Slangtule (Snelkoppeling)
1.4404 (316L)
Zonder bediening
|
Ventielhuis
|
Clamp
|
Slangtule (Snelkoppeling)
|
|
|
|
KE890040
|
KEOFITT monsternamekraan huis
Type Sesame - DIN11851
I/O connection(s):
2x Slangtule (Snelkoppeling)
1.4404 (316L)
Zonder bediening
|
Ventielhuis
|
Puntstuk wartel
|
Slangtule (Snelkoppeling)
|
|
|
|
KE890041
|
KEOFITT bediening Sesame
Type H - Draaiknop
1.4404 (316L) Silicone
|
Bediening
|
|
|
Draaiknop
|
|
|
KE890041E
|
KEOFITT bediening Sesame
Type H - Draaiknop
1.4404 (316L) EPDM
|
Bediening
|
|
|
Draaiknop
|
|
|
KE890043E
|
KEOFITT bediening Sesame
Type Q - Hendel
1.4404 (316L) EPDM
|
Bediening
|
|
|
Hendel
|
|
| Artikelnr. | Omschrijving | Maatvoering | Elastomeer | Voorraad |
|---|---|---|---|---|
|
KE890052
|
Keofitt Sesame
EPDM membraan
(10 pak)
|
|
|
|
|
KE890055
|
Keofitt Sesame
PTFE membraan
(10 pak)
|
|
|
|
|
T1900035
|
Keofitt 880830
O-RING 20,35 X 1,78
EPDM (FDA)
(10 pak)
|
|
|
|
