Micro Verl. bocht 90 1/2"x1/4" 316L Single melt 0,25µm

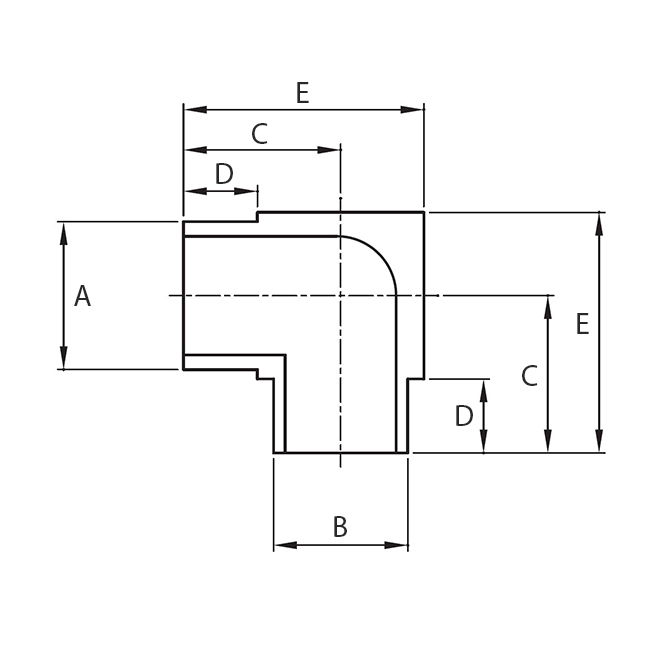

Micro Weld Fittings (Reducing 90° elbow)
A miniature version of the standard weld fitting, more compact and smaller than the larger orbital weld fittings. Micro Fittings have a compact design, making them more suitable for smaller assemblies and more compact placement of components while maintaining the same flow and performance compared to other fittings.
Specifications:
- Sizes: 1/8” – 3/4”
- Material: 316L, 316L VIM/VAR (Double Melt) (product contact parts)
- Surface Finish: Ra ≤ 0.25µm standard passivated, or Ra ≤ 0.13µm electropolished
- Custom versions available on request
The fittings are cleaned and packaged under cleanroom conditions. Additionally, they are suitable for processing with orbital welding equipment.
Certificates:
MTR (Mill Test Report) or 3.1 certificate according to EN 10204 (product contact parts)
| Artikelnr. | Omschrijving | Maatvoering | Maatvoering 2 | Materiaalsoort | Inwendige ruwheid | Voorraad |
|---|---|---|---|---|---|---|
|
7201504103
|
UHP Micro fitting
Reduceer lasbocht 90°
1/4"x1/8" (6,35 x 0,89 / 3,18 x 0,70)
316L Single melt
Interne ruwheid Ra ≤ 0,25µm
Standaard gepassiveerd
|
1/4" (ø 6,35 mm)
|
1/8" (ø 3,18 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201504105
|
UHP Micro fitting
Reduceer lasbocht 90°
3/8"x1/4" (9,53 x 0,89 / 6,35 x 0,89)
316L Single melt
Interne ruwheid Ra ≤ 0,25µm
Standaard gepassiveerd
|
3/8" (ø 9,53 mm)
|
1/4" (ø 6,35 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201504107
|
UHP Micro fitting
Reduceer lasbocht 90°
1/2"x1/4" (12,7 x 1,24 / 6,35 x 0,89)
316L Single melt
Interne ruwheid Ra ≤ 0,25µm
Standaard gepassiveerd
|
1/2" (ø 12,7 mm)
|
1/4" (ø 6,35 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201504109
|
UHP Micro fitting
Reduceer lasbocht 90°
1/2"x3/8" (12,7 x 1,24 / 9,53 x 0,89)
316L Single melt
Interne ruwheid Ra ≤ 0,25µm
Standaard gepassiveerd
|
1/2" (ø 12,7 mm)
|
3/8" (ø 9,53 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201504111
|
UHP Micro fitting
Reduceer lasbocht 90°
3/4"x1/4" (19,05 x 1,65 / 6,35 x 0,89)
316L Single melt
Interne ruwheid Ra ≤ 0,25µm
Standaard gepassiveerd
|
3/4" (ø 19,05 mm)
|
1/4" (ø 6,35 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201504113
|
UHP Micro fitting
Reduceer lasbocht 90°
3/4"x3/8" (19,05 x 1,65 / 9,53 x 0,89)
316L Single melt
Interne ruwheid Ra ≤ 0,25µm
Standaard gepassiveerd
|
3/4" (ø 19,05 mm)
|
3/8" (ø 9,53 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201504115
|
UHP Micro fitting
Reduceer lasbocht 90°
3/4"x1/2" (19,05 x 1,65 / 12,7 x 1,24)
316L Single melt
Interne ruwheid Ra ≤ 0,25µm
Standaard gepassiveerd
|
3/4" (ø 19,05 mm)
|
1/2" (ø 12,7 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201604203
|
UHP Micro fitting
Reduceer lasbocht 90°
1/4"x1/8" (6,35 x 0,89 / 3,18 x 0,70)
316L Double melt
Interne ruwheid Ra ≤ 0,13µm
Elektrolytisch gepolijst (EP)
|
1/4" (ø 6,35 mm)
|
1/8" (ø 3,18 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
|
|
7201604204
|
UHP Micro fitting
Reduceer lasbocht 90°
3/8"x1/4" (9,53 x 0,89 / 6,35 x 0,89)
316L Double melt
Interne ruwheid Ra ≤ 0,13µm
Elektrolytisch gepolijst (EP)
|
3/8" (ø 9,53 mm)
|
1/4" (ø 6,35 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
|
|
7201604205
|
UHP Micro fitting
Reduceer lasbocht 90°
1/2"x1/4" (12,7 x 1,24 / 6,35 x 0,89)
316L Double melt
Interne ruwheid Ra ≤ 0,13µm
Elektrolytisch gepolijst (EP)
|
1/2" (ø 12,7 mm)
|
1/4" (ø 6,35 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
|
|
7201604206
|
UHP Micro fitting
Reduceer lasbocht 90°
1/2"x3/8" (12,7 x 1,24 / 9,53 x 0,89)
316L Double melt
Interne ruwheid Ra ≤ 0,13µm
Elektrolytisch gepolijst (EP)
|
1/2" (ø 12,7 mm)
|
3/8" (ø 9,53 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
|
|
7201604207
|
UHP Micro fitting
Reduceer lasbocht 90°
3/4"x1/4" (19,05 x 1,65 / 6,35 x 0,89)
316L Double melt
Interne ruwheid Ra ≤ 0,13µm
Elektrolytisch gepolijst (EP)
|
3/4" (ø 19,05 mm)
|
1/4" (ø 6,35 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
|
