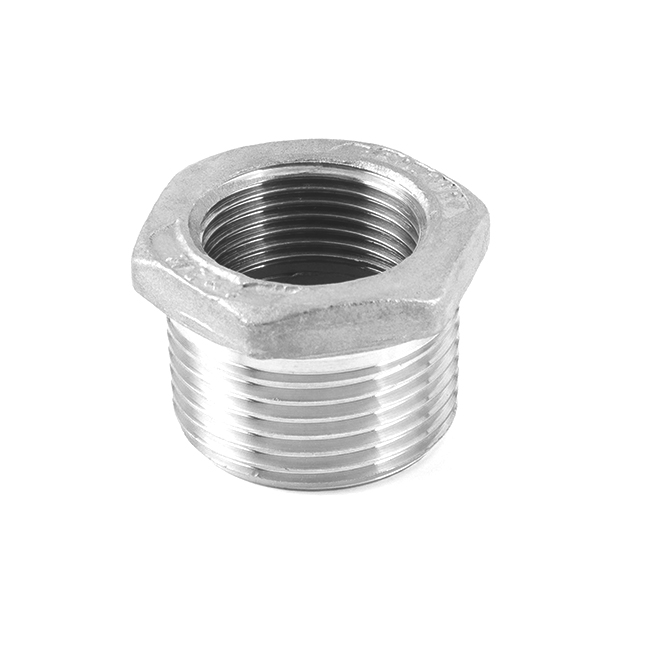

Verloopringen (buiten / binnen)

Name: SKS
Address: Keurweg 2, Waalwijk, 5145 NX, NL
Telephone: +31(0) 88 120 23 00
Price range: €€€

Draadfitting BSP DIN 2999 bu=con. Bi=cylindr Verloopring 1"x 1/2" 316

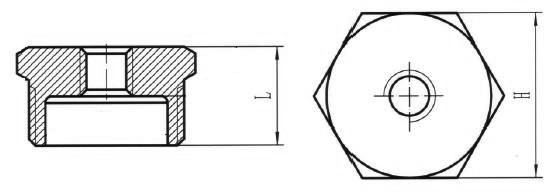

Artikelnr.	Omschrijving	Maatvoering ISO 4144	Materiaalsoort	Lengte	Maatvoering 2 ISO 4144
75736541	Verloopring 1/4"x1/8" 316 Draadfitting BSP ISO4144 B1 bu=con. bi=cylindr. Verloopring 1/4"x1/8" 316	1/4" (ø 14)	RVS 316 gegoten	16 mm	1/8"
75736541D	Verloopring 1/4"x1/8" 316 D Draadfitting BSP gedraaid DIN2999 bu=con. bi=cylindr. Verloopring 1/4"x1/8" 316	1/4" (ø 14)	RVS 316Ti gesmeed	17 mm	1/8"
75736542	Verloopring 3/8"x1/8" 316 Draadfitting BSP ISO4144 B1 bu=con. bi=cylindr. Verloopring 3/8"x1/8" 316	3/8" (ø 17,2)	RVS 316 gegoten	16,5 mm	1/8"
75736542D	Verloopring 3/8"x1/8" 316 D Draadfitting BSP gedraaid DIN2999 bu=con. bi=cylindr. Verloopring 3/8"x1/8" 316	3/8" (ø 17,2)	RVS 316Ti gesmeed	17,5 mm	1/8"
75736543	Verloopring 3/8"x1/4" 316 Draadfitting BSP ISO4144 B1 bu=con. bi=cylindr. Verloopring 3/8"x1/4" 316	3/8" (ø 17,2)	RVS 316 gegoten	16,5 mm	1/4"
75736543D	Verloopring 3/8"x1/4" 316 D Draadfitting BSP gedraaid DIN2999 bu=con. bi=cylindr. Verloopring 3/8"x1/4" 316	3/8" (ø 17,2)	RVS 316Ti gesmeed	17,5 mm	1/4"
75736544	Verloopring 1/2"x1/8" 316 Draadfitting BSP ISO4144 B1 bu=con. bi=cylindr. Verloopring 1/2"x1/8" 316	1/2" (ø 21,4)	RVS 316 gegoten	20 mm	1/8"
75736544D	Verloopring 1/2"x1/8" 316 D Draadfitting BSP gedraaid DIN2999 bu=con. bi=cylindr. Verloopring 1/2"x1/8" 316	1/2" (ø 21,4)	RVS 316Ti gesmeed	21 mm	1/8"
75736545	Verloopring 1/2"x1/4" 316 Draadfitting BSP ISO4144 B1 bu=con. bi=cylindr. Verloopring 1/2"x1/4" 316	1/2" (ø 21,4)	RVS 316 gegoten	20 mm	1/4"
75736545D	Verloopring 1/2"x1/4" 316 D Draadfitting BSP gedraaid DIN2999 bu=con. bi=cylindr. Verloopring 1/2"x1/4" 316	1/2" (ø 21,4)	RVS 316Ti gesmeed	21 mm	1/4"
75736546	Verloopring 1/2"x3/8" 316 Draadfitting BSP ISO4144 B1 bu=con. bi=cylindr. Verloopring 1/2"x3/8" 316	1/2" (ø 21,4)	RVS 316 gegoten	20 mm	3/8"
75736546D	Verloopring 1/2"x3/8" 316 D Draadfitting BSP gedraaid DIN2999 bu=con. bi=cylindr. Verloopring 1/2"x3/8" 316	1/2" (ø 21,4)	RVS 316Ti gesmeed	21 mm	3/8"
