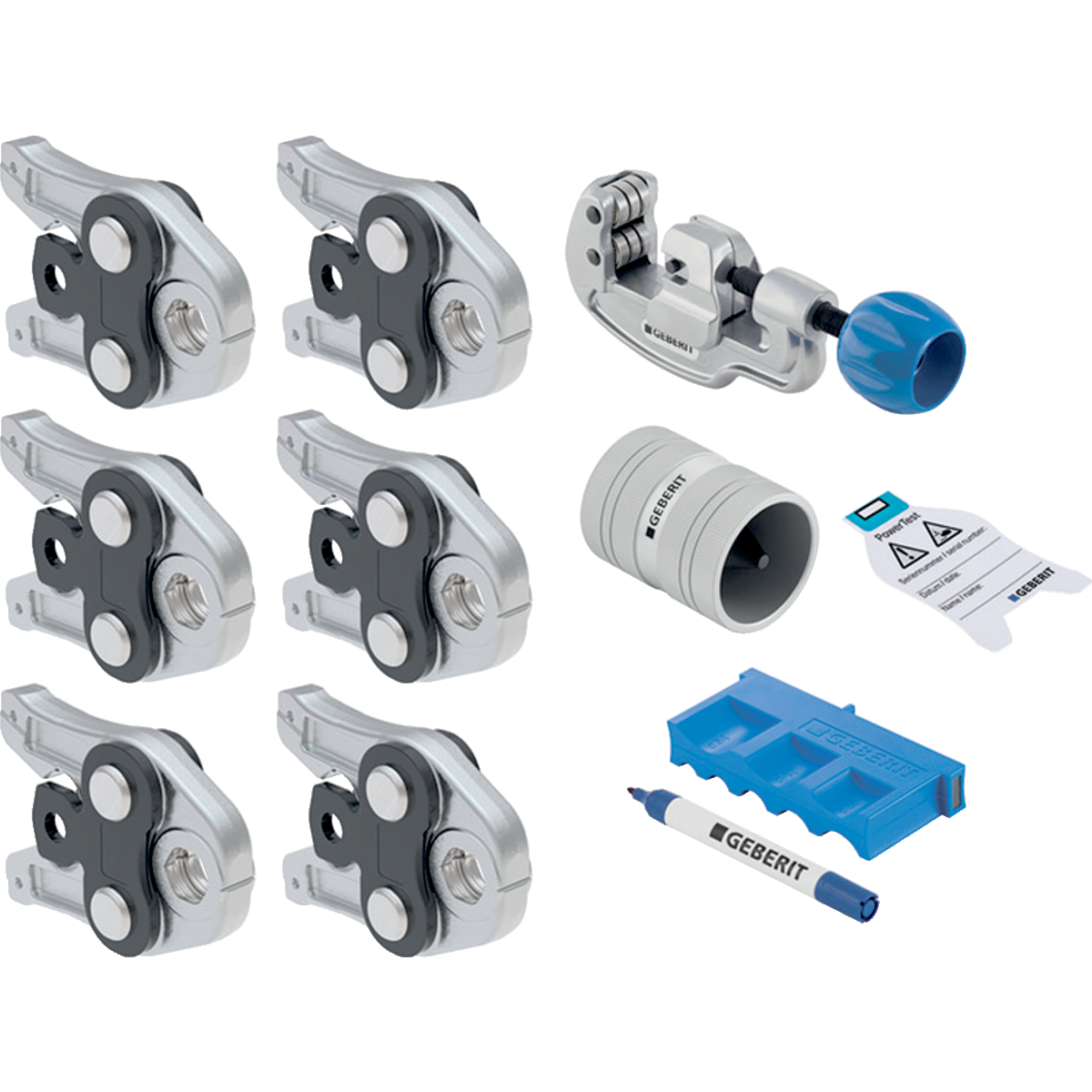

Mapress set persbekken [2] 12-35

Geberit Mapress

For various liquids and gases, Geberit Mapress has developed a complete piping system. Installation of the special fittings is easy using the corresponding pressing tool.
This press connection is not only faster and simpler than conventional connection methods, but also minimises processing errors, allowing Geberit to provide a guarantee.

It is ideal for installations in used/occupied buildings or in laboratories and production halls with specific cleanliness requirements.
There is no fire risk, enabling safe installation in explosion-proof areas.

Mapress is applicable in different areas such as:

Drinking water (with the exception of Mapress Therm)
Cleaning fluids
Compressed air and (saturated) steam
Technical gases
Cooling medium
Oil, fats and fuels

According to EN1935:2004, Mapress cannot be used to transport food & dairy products.
Mapress is available in various materials, of which SKS has included the stainless steel part in its supply programme.

Mapress is available with different seals that are interchangeable. The different seals are:

CIIR black
FKM blue
FKM white
HNBR yellow (Mapress Gas)

Lees meer Lees minder

Artikelnr.	Omschrijving	Voorraad

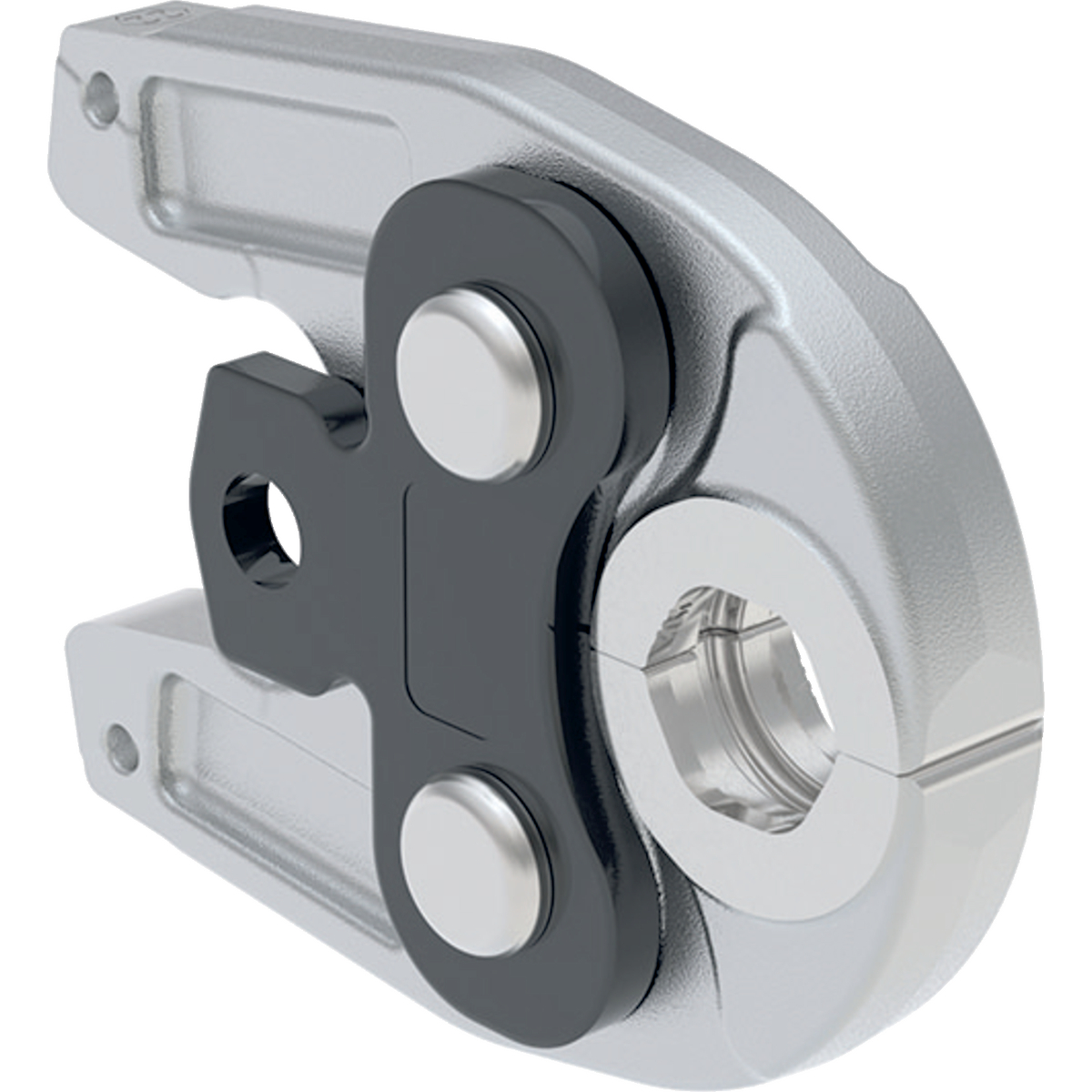

74901001MA	Mapress persbek comp. [1] 12 Geberit Mapress persbek compatibiliteit [1] 12 mm
74901002MA	Mapress persbek comp. [1] 15 Geberit Mapress persbek compatibiliteit [1] 15 mm
74901003MA	Mapress persbek comp. [1] 18 Geberit Mapress persbek compatibiliteit [1] 18 mm
74901004MA	Mapress persbek comp. [1] 22 Geberit Mapress persbek compatibiliteit [1] 22 mm
74901005MA	Mapress persbek comp. [1] 28 Geberit Mapress persbek compatibiliteit [1] 28 mm
74901006MA	Mapress persbek comp. [1] 35 Geberit Mapress persbek compatibiliteit [1] 35 mm

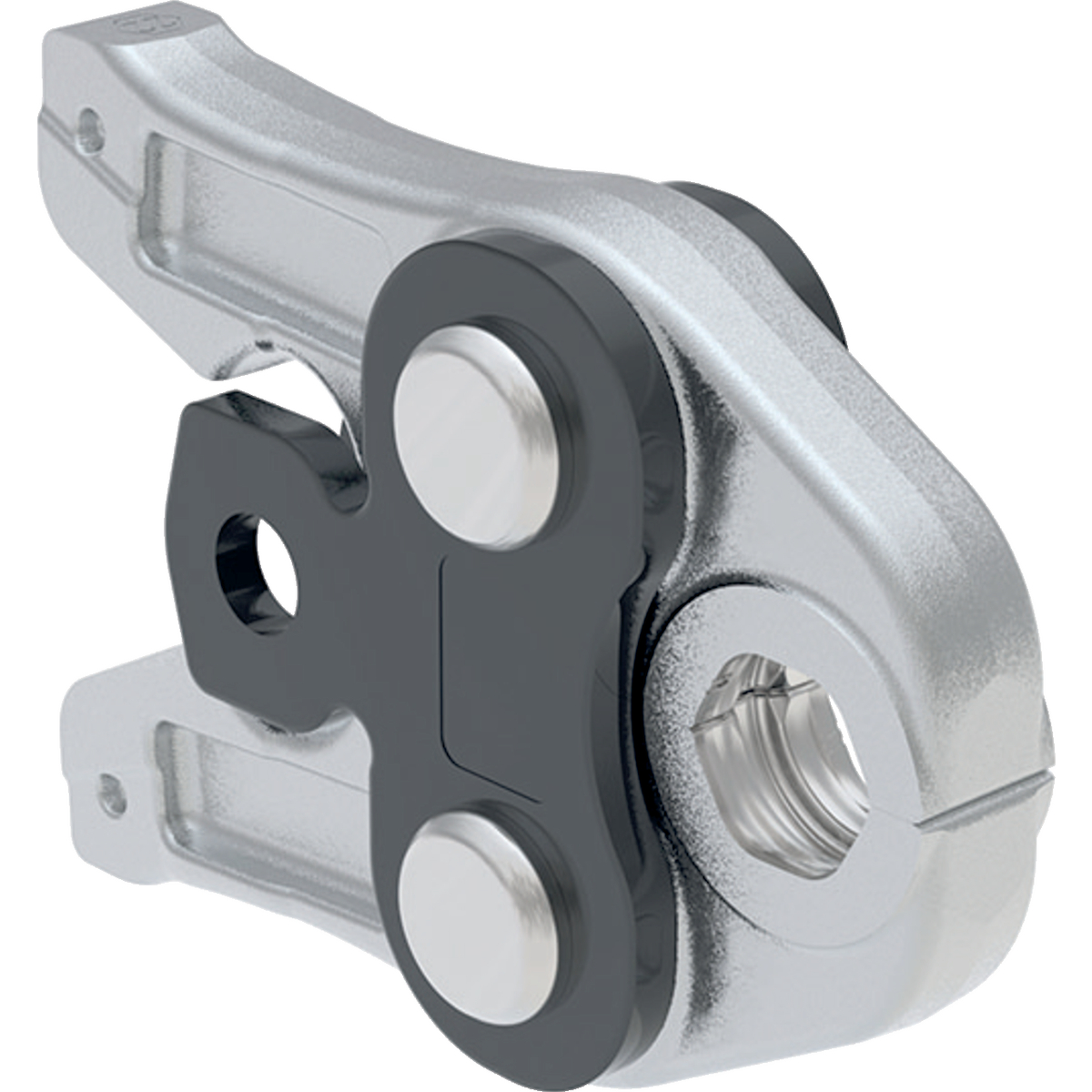

74901101MA	Mapress persbek comp. [2] 12 Geberit Mapress persbek compatibiliteit [2] 12 mm
74901102MA	Mapress persbek comp. [2] 15 Geberit Mapress persbek compatibiliteit [2] 15 mm
74901103MA	Mapress persbek comp. [2] 18 Geberit Mapress persbek compatibiliteit [2] 18 mm
74901104MA	Mapress persbek comp. [2] 22 Geberit Mapress persbek compatibiliteit [2] 22 mm
74901105MA	Mapress persbek comp. [2] 28 Geberit Mapress persbek compatibiliteit [2] 28 mm
74901106MA	Mapress persbek comp. [2] 35 Geberit Mapress persbek compatibiliteit [2] 35 mm
