Afsluiters BSP 1" 1-delig dr/dr

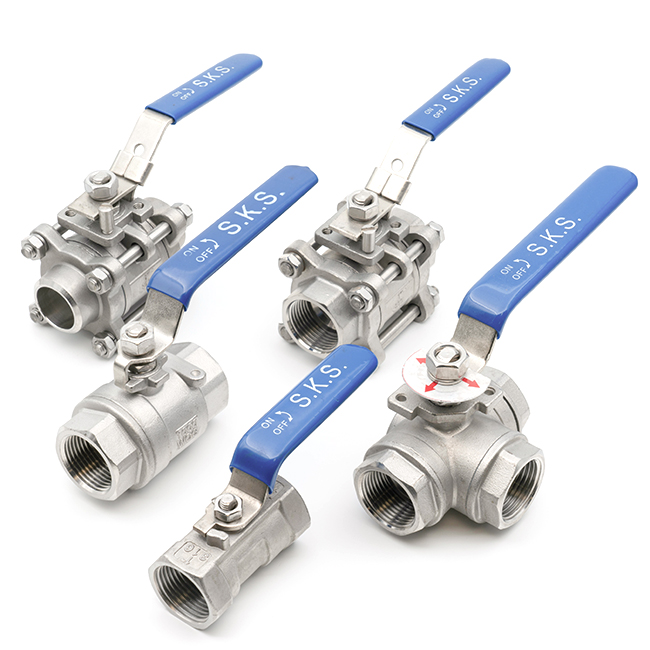

To complete the BSP/thread program, S.K.S. offers a wide range of ball valves. In the overviews below, you will find the products that are available from stock. Additionally, S.K.S. offers various other models, including valves for higher pressures, special connections, and different operating methods such as pneumatic or electric.
The threaded connections feature tapered threads according to ISO 7-1 and DIN 2999-1 (BSP). The standard ball valves are "blow out proof" and withstand approximately 69 bar (1000 PSI) at 40°C. For higher pressures or specific applications, we refer you to our industrial valve catalog. You can, of course, also contact our sales representatives.
The standard ball valves are suitable for applications with:
- Maximum working pressure of 63 bar / 1000 PSI
- Temperature range from -20° to 132°C
| Artikelnr. | Omschrijving | Maatvoering ISO 4144 | Aansluiting | Uitvoering | Type | Voorraad |
|---|---|---|---|---|---|---|
|
80136002
|
Kogelkraan BSP handbediend
1/4" 2-delig volle doorlaat 316
|
1/4" (ø 14)
|
Draad / Draad
|
Rechte boring
|
2-delig
|
|
|
80136004
|
Kogelkraan BSP handbediend
3/8" 2-delig volle doorlaat 316
|
3/8" (ø 17,2)
|
Draad / Draad
|
Rechte boring
|
2-delig
|
|
|
80136006
|
Kogelkraan BSP handbediend
1/2" 2-delig volle doorlaat 316
|
1/2" (ø 21,3)
|
Draad / Draad
|
Rechte boring
|
2-delig
|
|
|
80136008
|
Kogelkraan BSP handbediend
3/4" 2-delig volle doorlaat 316
|
3/4" (ø 26,7)
|
Draad / Draad
|
Rechte boring
|
2-delig
|
|
|
80136010
|
Kogelkraan BSP handbediend
1" 2-delig volle doorlaat 316
|
1" (ø 33,4)
|
Draad / Draad
|
Rechte boring
|
2-delig
|
|
|
80136012
|
Kogelkraan BSP handbediend
1 1/4" 2delig volle doorlaat 316
|
1 1/4" (ø 42,2)
|
Draad / Draad
|
Rechte boring
|
2-delig
|
|
|
80136014
|
Kogelkraan BSP handbediend
1 1/2" 2delig volle doorlaat 316
|
1 1/2" (ø 48,3)
|
Draad / Draad
|
Rechte boring
|
2-delig
|
|
|
80136016
|
Kogelkraan BSP handbediend
2" 2-delig volle doorlaat 316
|
2" (ø 60,4)
|
Draad / Draad
|
Rechte boring
|
2-delig
|
|
|
80136018
|
Kogelkraan BSP handbediend
2 1/2" 2delig volle doorlaat 316
|
2 1/2" (ø 76)
|
Draad / Draad
|
Rechte boring
|
2-delig
|
|
|
80136020
|
Kogelkraan BSP handbediend
3" 2-delig volle doorlaat 316
|
3" (ø 88,9)
|
Draad / Draad
|
Rechte boring
|
2-delig
|
|
|
80136022
|
Kogelkraan BSP handbediend
4" 2-delig volle doorlaat 316
|
4" (ø 114,3)
|
Draad / Draad
|
Rechte boring
|
2-delig
|
|
|
80136132
|
1/4" (ø 14)
|
Draad / Draad
|
Rechte boring
|
1-delig
|
|
