Inoxpa buisfilters
Applying the Inoxpa filters
Inoxpa Filters have a wide range of applications in the food-processing, cosmetics and some chemical industries as well as in auxiliary services of the pharmaceutical industry. They have a hygienic design and are used to filter particles capable of damaging pumps and other equipment like mixproof valves.
Operating principle

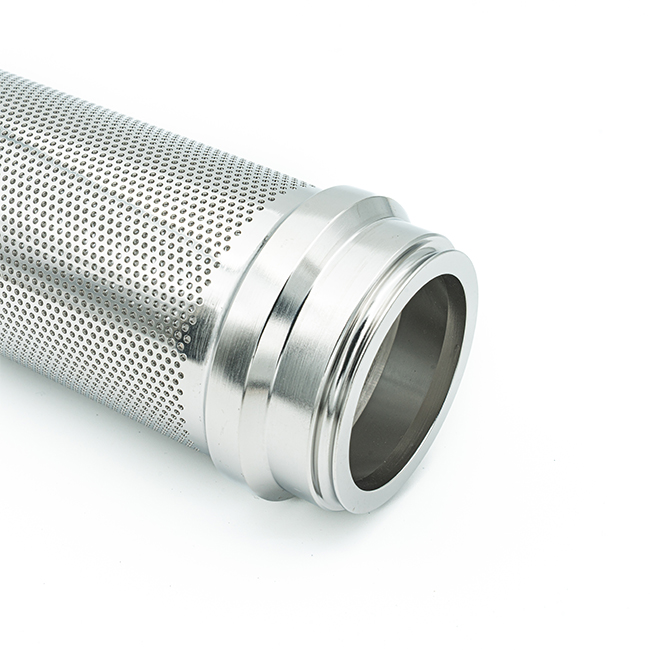

The filter basically consists of a filter body with an inlet and an outlet for the product. The screen is fixed inside and the body retains all particles that are equal or larger than the size of the screen openings.
Design and features
There are several configurations:
- Cleaning of the screen without disassembling the filter.
- Y filter (83700): the product enters and leaves the filter in the same direction.

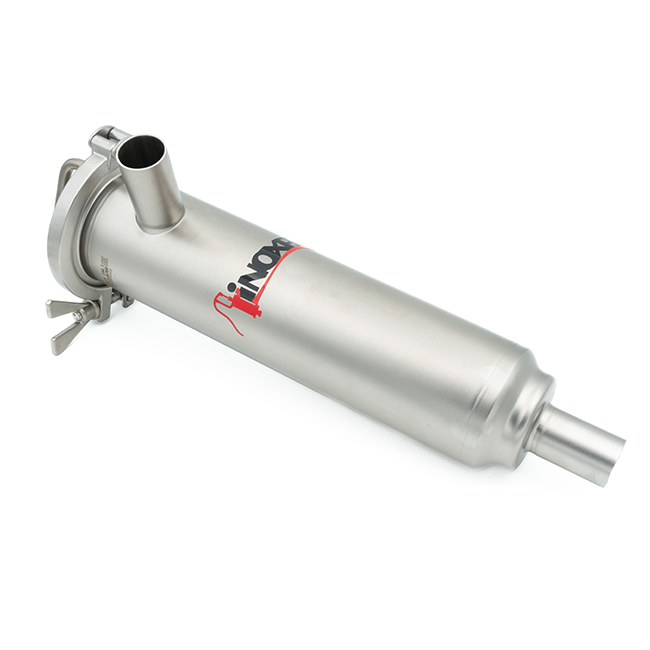

- Angular filter (82700): the inlet and the outlet form a right angle.
- Cleaning of the screen disassembling the filter:
- Straight filter (81700): the product enters and leaves the filter in the same direction.
| Artikelnr. | Omschrijving | Maatvoering | Materiaalsoort | Aansluiting | Elastomeer | Voorraad |
|---|---|---|---|---|---|---|
|
13339235IN
|
Haaks buisfilter Cl/Cl
met afwijkende perforatie
2" 1.4404 (316L)
fig 82717
|
2" (ø 50,8 mm)
|
316 (L)
|
Clamp / Clamp
|
|
|
|
13348273IN
|
In-line filter 817200
T.b.v. Clamp koppeling
2" 1.4404 (316L) FPM
Wedge wire 0.2mm
|
2" (ø 50,8 mm)
|
316 (L)
|
Clamp / Clamp
|
FKM (Viton)
|
|
| Artikelnr. | Omschrijving | Maatvoering | Elastomeer | Voorraad |
|---|---|---|---|---|
|
IN8JF3052040
|
Onderdeel haaks buisfilter + Y-filter
Standaard zeef
Afdichtings set EPDM
DN40-50 / 1.5"-2"
|
|
|
|
|
IN8JF3080065
|
Onderdeel haaks buisfilter + Y-filter
standaard zeefinzet
Afdichtings set FPM
DN65-80 / 2.5"-3"
|
|
|
|
|
IN8JF3080100
|
Onderdeel haaks buisfilter + Y-filter
Standaard zeefinzet
Afdichtings set FPM
DN100 / 4"
|
|
|
|
|
13330907IN
|
Onderdeel haaks buisfilter
Type 82700, DN65
O-ring 82.14x3.53 EPDM
|
|
|
|
|
IN8JF3052065
|
Onderdeel haaks buisfilter + Y-filter
Standaard zeefinzet
Afdichtings set EPDM
DN65-80 / 2.5"-3"
|
|
|
|
|
13330685IN
|
Onderdeel haaks buisfilter
Afdichtings set EPDM 2"
|
|
|
|
|
IN8JF3052100
|
Onderdeel haaks buisfilter + Y-filter
Standaard zeefinzet
Afdichtings set EPDM
DN100 / 4"
|
|
|
|
|
13330908IN
|
Onderdeel haaks buisfilter
Type 82700, DN65
Clamp afdichting EPDM
|
|
|
|
|
IN8JF1052065
|
Onderdeel inlinefilter 8170
Afdichtings set EPDM
DN65-80 / 2.5"-3"
|
|
|
|
|
IN8JF3052025
|
Onderdeel haaks buisfilter + Y-filter
Standaard zeef
Afdichtings set EPDM
DN25-32 / 1"
|
|
|
|
|
IN1J106500471035
|
Onderdeel Inoxpa
Onderdeel haakse buisfilter
EPDM o-ring
t.b.v. wedge wire inzet DN25/32
|
|
|
|
|
13330686IN
|
Onderdeel haaks buisfilter
O-ring EPDM Peroxide 2"
72.62x3.53
|
|
|
|
