Product information
Threaded fitting BSP machined
DIN2999 In=cylindr. out=con.

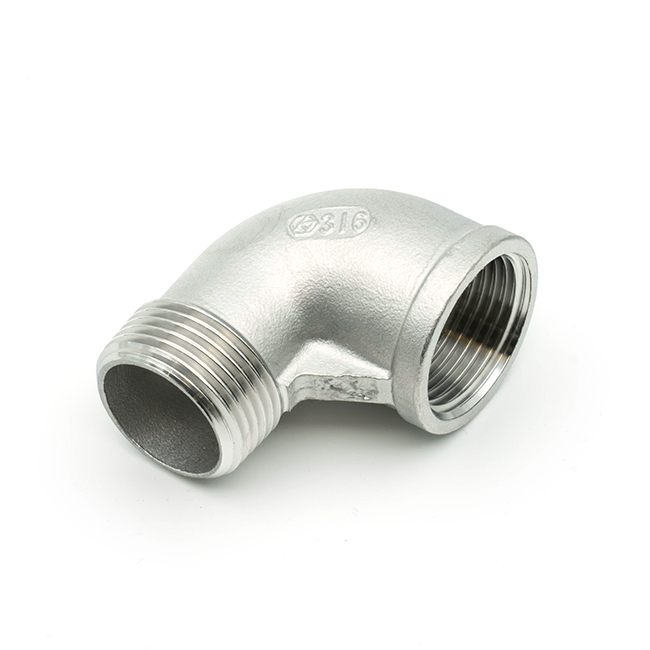

Elbow in/out 90° 1/2" 316
Properties
| ISO 4144 Dimensions: | 1/2" (ø 21,3) |
|---|---|
| Degrees: | 90° |
| Material type: | SS 316Ti Forged |
| Connection: | Inside / Outside |
Product information
| Weight | 0.12 kg |
|---|

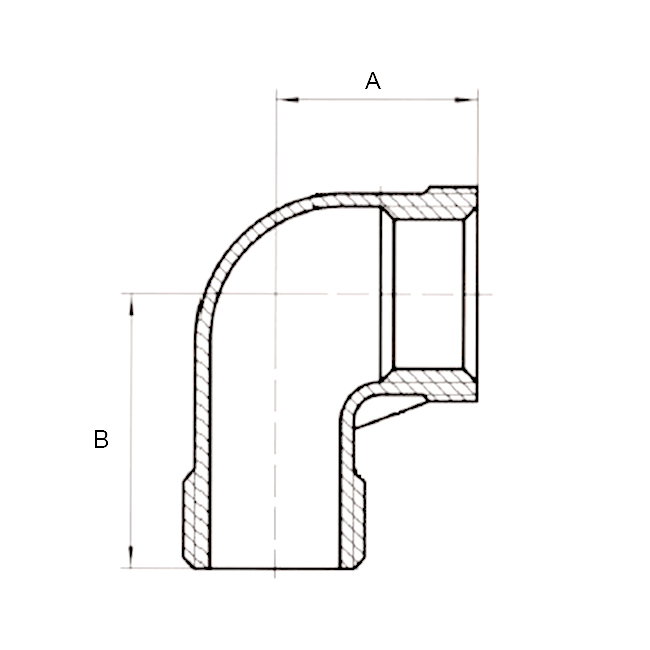

Dimensions
| Dimension A | 28 |
|---|---|
| Dimension B | 41 |
| Dimension C | |
| Dimension D | |
| Dimension E |
BSP Elbow M/F 90° 1/2" 316
BSP thread connection ISO 4144
Bend 90° (E4)
ISO 7-1 outside BSPT tapered thread
ISO 228-1 inside BSPP parallel thread
1/2" / DN15
316 casted
