Product information
Expanding liner part (D)
1" (25,40 x 1,25)
1.4307 (304L) DIN11851
Properties
| Dimensions: | 1" (ø 25,4 mm) |
|---|---|
| Material type: | 304 (L) |
Product information
| Weight | 0.111 kg |
|---|---|
| Custom tariff code | 73072980 |
| Packaging Unit | packed per 10 pieces |
| 3.1 Certificate: | Yes |

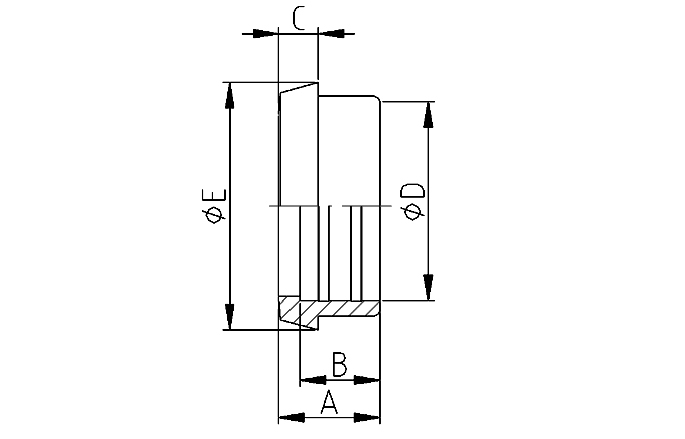

Dimensions
| Dimension A | 22 |
|---|---|
| Dimension B | 15 |
| Dimension C | 10 |
| Dimension D | 25,6 |
| Dimension E | 44 |
Nut (F) DIN11851 DN25 304
Nut (F)
DIN11851:
1" (ø 25,4) / DN25 (ø 29) / DN25 ISO (ø 33,7)
DIN11853-1 / DIN11864-1:
1" (ø 25,4) / DN25 (ø 29) / DN20 ISO (ø 26,9)
Thread Rd52x1/6"
1.4301 / 1.4307 (304 / 304L)
Exp. malepart 11851 WC 1" 304
Expanding male part (C)
1" (25,40 x 1,25)
Thread Rd52x1/6"
1.4307 (304L) DIN11851
