Product information
Clamp ferrule long
DIN32676-KL Serie A
DN50 (53,00 x 1,50)
Flange size Ø64mm, L = 36
1.4404 (316L)
Internal surface Ra 0,8 µm (H3)
Properties
| Dimensions: | DN50 (ø 53 mm) |
|---|---|
| Flange diameter: | 64 |
| Material type: | 316 (L) |
| Length: | 36 mm |
| Internal surface: | Ra ≤ 0,8 (H3o) |
Product information
| Weight | 0.115 kg |
|---|

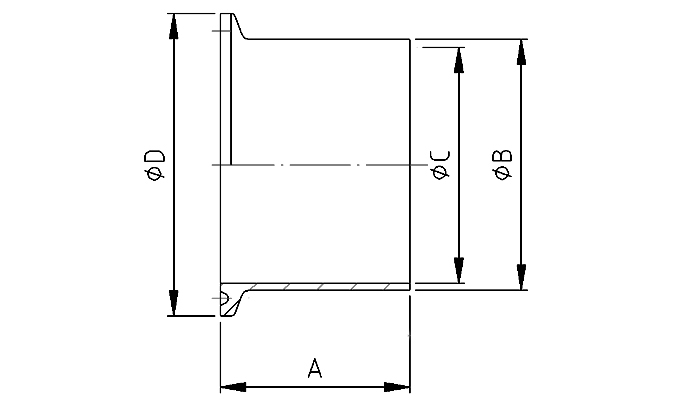

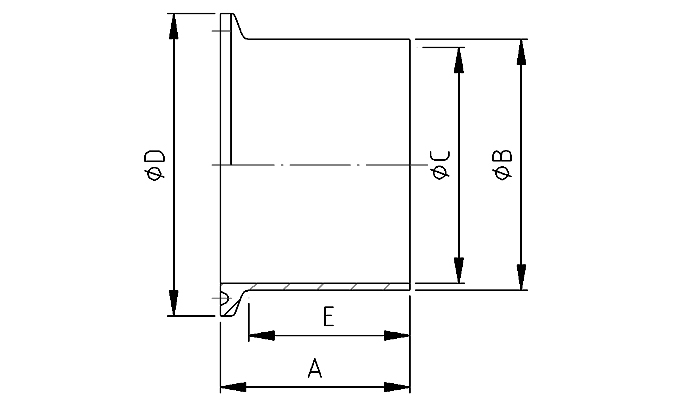

Dimensions
| Dimension A | 36 |
|---|---|
| Dimension B | 53 |
| Dimension C | 50 |
| Dimension D | 64 |
| Dimension E |
