Product information
Clamp ferrule short
DIN32676-KK Serie B
DN50 (60,30 x 2,00)
Flange diameter Ø77,5, L = 28
1.4404 (316L)
Internal surface Ra 0,8 µm (H3)
Properties
| Dimensions: | DN50 (ø 60,3 mm) |
|---|---|
| Flange diameter: | 77,5 |
| Material type: | 316 (L) |
| Length: | 28 mm |
Product information
| Weight | 0.14 kg |
|---|---|
| Custom tariff code | 73072980 |
| 3.1 Certificate: | Yes |

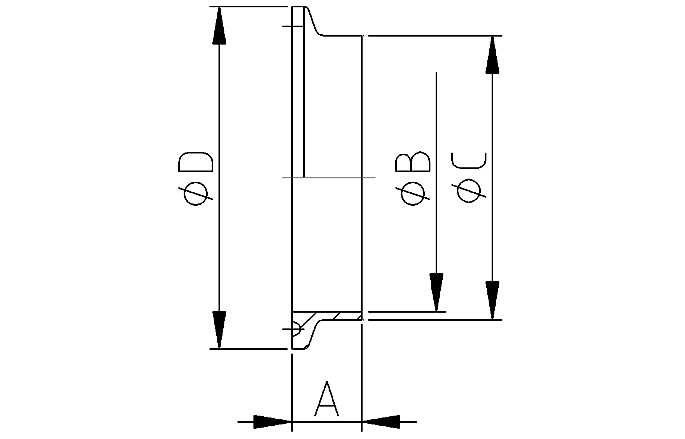

Dimensions
| Dimension A | 28 |
|---|---|
| Dimension B | 56,3 |
| Dimension C | 60,3 |
| Dimension D | 77,5 |
| Dimension E |
Gasket CLAMP OD 60,3 EPDM
Clamp gasket DIN32676-B
DN50 (60,30)
Flange size Ø77,5mm
EPDM Type A
including lip
Clamp flange Ø77,5mm heavy 2,5"
Clamp ring
Heavy execution
Flange diameter Ø77,5
According DIN32676:
2,5"/ ISO 60,30
According DIN11864 / DIN11853:
DN50 / 2"
1.4307 (304L)
