Product information
Gasket IDF
ISO 2853 / BS4825-4
2,5" EPDM
TYPE B L-profile
Properties
| Dimensions: | 2,5" (ø 63,5 mm) |
|---|---|
| Elastomer: | EPDM |
Product information
| Weight | 0.003 kg |
|---|---|
| Custom tariff code | 40169300 |
| 3.1 Certificate: | No |

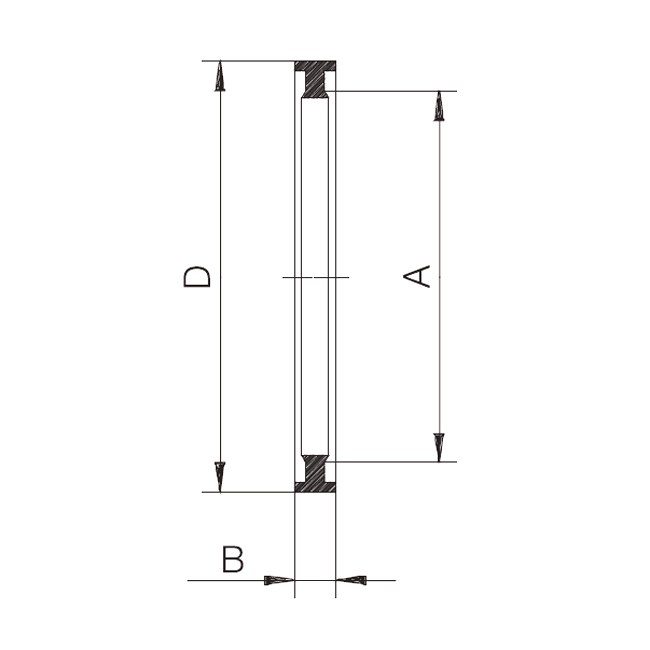

Dimensions
| Dimension A | 73,2 |
|---|---|
| Dimension B | 6 |
| Dimension C | |
| Dimension D | 61,3 |
| Dimension E |
Nut (hex.) IDF BS4825 2.5" 304
Nut
IDF BS 4825-4 hexagonal 2.5"
W86,3x1/6"
1.4301 / 1.4307 (304 / 304L)
Male part IDF BS4825 2,5" 316L
Welding male part
2,5" (63,50 x 1,50)
Tr78,8x1/8"
1.4404 (316L) IDF BS4825-4
