Product information

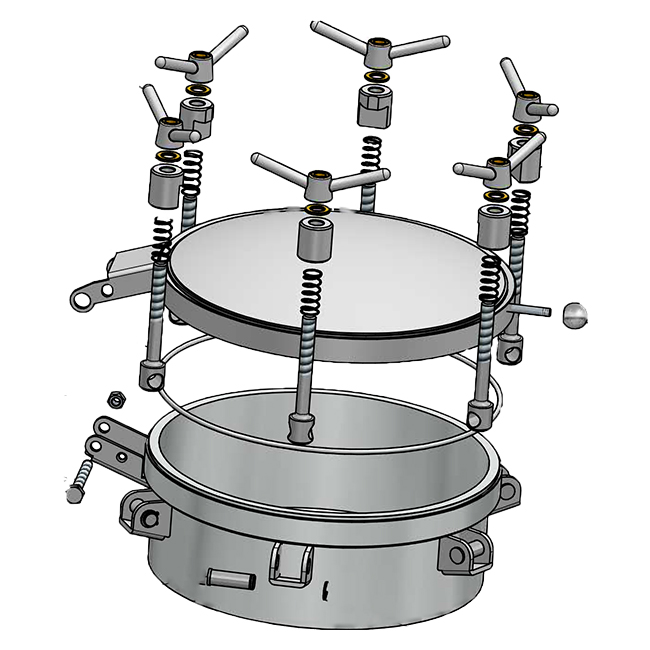

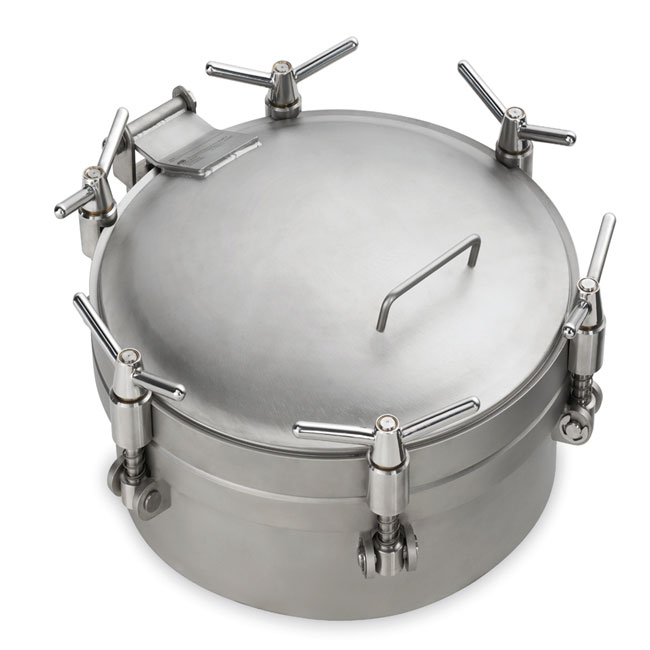

Manholecover Zorzini type 400P
FPM 316, ø406 with 6 handles
Max. pressure -1 / 5,8 bar, Temp. -15° / 50°C
Max. pressure -1 / 5,0 bar, Temp. -15° / 100°C
Max. pressure -1 / 4,4 bar, Temp. -15° / 150°C
Max. pressure -1/ 4,0 bar, Temp. -15° / 200°C
Properties
| Brand: | Zorzini |
|---|---|
| Material type: | 316 (L) |

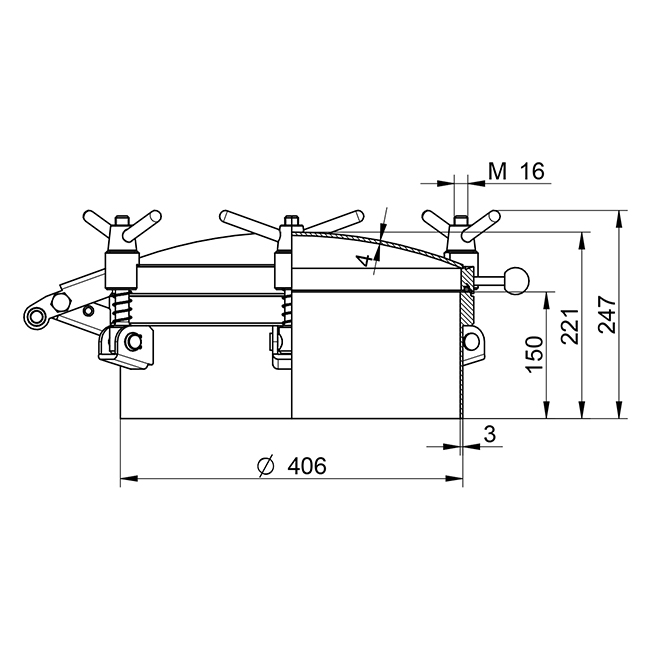

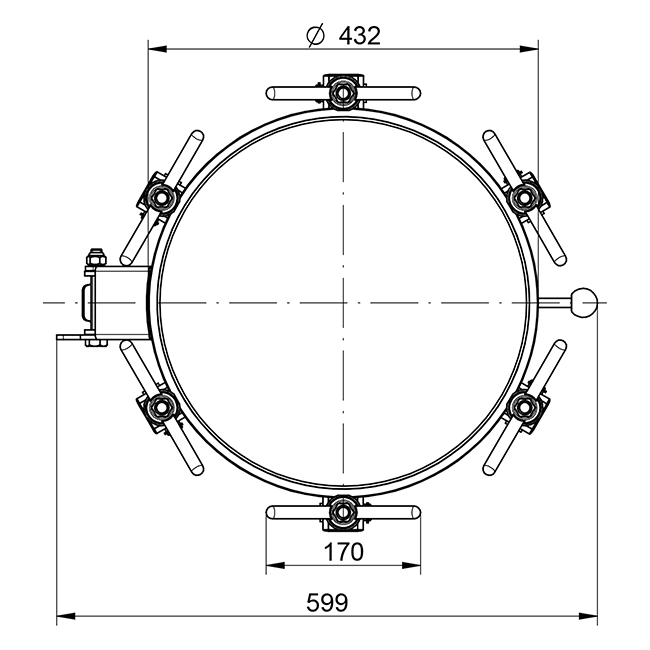

| Diameter: | 406 mm |
| Neck height: | 150 mm |
| Pressure application: | 4 bar |
| Elastomer: | FKM (Viton) |
Product information
| Weight | 19.3 kg |
|---|---|
| Custom tariff code | 84818099 |
