Product information

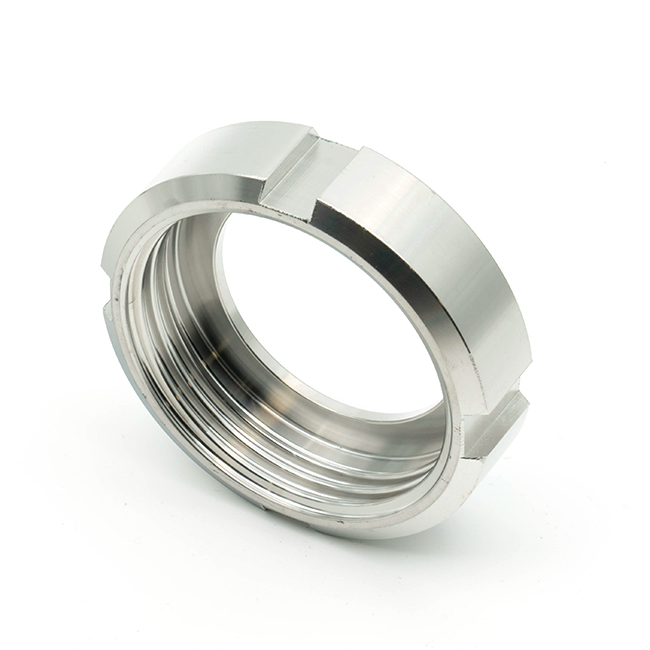

Nut (F)
DIN11851:
DN15 (ø 19) / DN15 ISO (ø 21,30)
DIN11853-1 / DIN11864-1:
0,75" (ø 19,05) / DN15 (ø 19) / DN10 ISO (ø 17,2)
Thread Rd34x1/8"
1.4404 (316L)
Properties
| Dimensions: | DN10 (ø 17,2 mm) Rd34x1/8", DN15 (ø 19 mm) Rd34x1/8", 3/4" (ø 19,05 mm) Rd34x1/8", DN15 (ø 21,3 mm) Rd34x1/8" |
|---|---|
| Material type: | 316 (L) |
Product information
| Weight | 0.081 kg |
|---|---|
| Custom tariff code | 73072980 |
| Packaging Unit | packed per 10 pieces |
| 3.1 Certificate: | No |

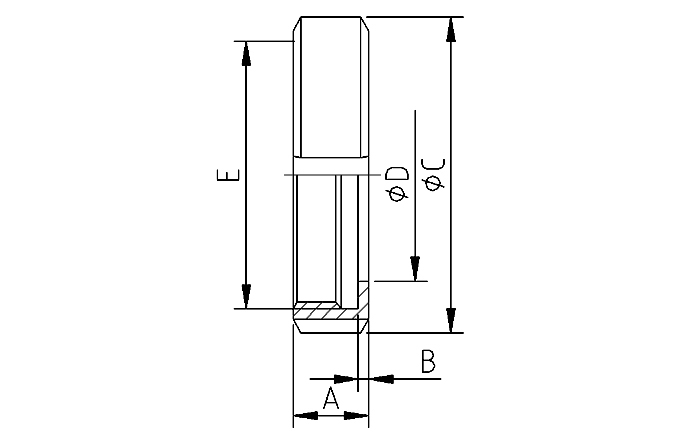

Dimensions
| Dimension A | 18 |
|---|---|
| Dimension B | 3 |
| Dimension C | 44 |
| Dimension D | 25 |
| Dimension E | Rd34x1/8" |
Male part DIN11853-1 3/4" 316L
Welding male part
0,75" (19,05 x 1,65)
Thread Rd34x1/8"
1.4404 (316L) DIN11853-1 serie C
Internal surface Ra 0,8 µm (H3)
Male part 11864-1 H3 DN15 316L
Welding male part
DN15 (19,00 x 1,50)
Thread Rd34x1/8"
1.4404 (316L) DIN11864-1 serie A
Internal surface Ra 0,8 µm (H3)
Liner part DIN11853-1 DN15 316L
Welding liner part
DN15 (19,00 x 1,50)
1.4404 (316L) DIN11853-1 serie A
Internal surface Ra 0,8 µm (H3)
Liner part DIN11853-1 3/4" 316L
Welding liner part
0,75" (19,05 x 1,65)
1.4404 (316L) DIN11853-1 serie C
Internal surface Ra 0,8 µm (H3)
Male part DIN11853-1 DN15 316L
Welding male part
DN15 (19,00 x 1,50)
Thread Rd34x1/8"
1.4404 (316L) DIN11853-1 serie A
Internal surface Ra 0,8 µm (H3)
Liner 11864-1 H3 3/4" 316L
Welding liner part
0,75" (19,05 x 1,65)
1.4404 (316L) DIN11864-1 serie C
Internal surface Ra 0,8 µm (H3)
Liner 11864-1 H3 DN15 316L
Welding liner part
DN15 (19,00 x 1,50)
1.4404 (316L) DIN11864-1 serie A
Internal surface Ra 0,8 µm (H3)
O-ring DIN11864-A DN15-3/4" EPDM
O-ring DIN11864
DN15 (19) / 0,75" (19,05)
EPDM
25,00 x 18,00 x 3,50
Male part 11864-1 H3 3/4" 316L
Welding male part
0,75" (19,05 x 1,65)
Thread Rd34x1/8"
1.4404 (316L) DIN11864-1 serie C
Internal surface Ra 0,8 µm (H3)
Male part 11851 SC DN15 316
Welding male part (SC)
DN15 (19,00 x 1,50)
Thread Rd34x1/8"
1.4404 (316L) DIN11851
Malepart 11851 ISO DN15/21.3 316
Welding male part (SC)
DN15 (21,30 x 2,00)
Thread Rd34x1/8"
1.4404 (316L) DIN11851
Exp. malepart 11851 WC DN15 316L
Expanding male part (C)
DN15 (19,00 x 1,50)
Thread Rd34x1/8"
1.4404 (316L) DIN11851
