Product information
Pharmaceutical bend Weld / Clamp
90° DT-4.1.1-2 / B2CMW
0,5" (12,70 x 1,65) 1.4404 (316L)
SF1 Internal surface Ra ≤ 0,51µm
ASME BPE Certified
Properties
| Dimensions: | 1/2" (ø 12,7 mm) |
|---|---|
| Degrees: | 90° |
| Internal surface: | Ra ≤ 0,51 (SF1) |
| Connection: | Weld / Clamp |
Product information
| Weight | 0.07 kg |
|---|

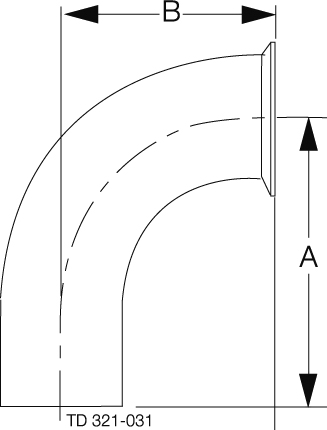

Dimensions
| Dimension A | 76,2 |
|---|---|
| Dimension B | 41,3 |
| Dimension C | |
| Dimension D | |
| Dimension E |
slide 6 to 10 of 17
Bend C/C 45° 1/2" SF1 316L
Pharmaceutical bend Clamp / Clamp
45° DT-4.1.1-6 / B2KMP
0,5" (12,70 x 1,65) 1.4404 (316L)
SF1 Internal surface Ra ≤ 0,51µm
ASME BPE Certified
Cross B9wwww BPE SF1 1/2" 316L
Pharmaceutical welding cross
Weld / Weld / Weld / Weld
DT-4.1.2-1 / B9WWWW
0,5" (12,70 x 1,65)
1.4404 (316L)
SF1 Internal surface Ra ≤ 0,51µm
ASME BPE Certified
Instr.Tee LLC 1/2-1,5" SF1 316L
Pharmaceutical tee Instrument T
Weld / Weld / Clamp
DT-4.1.2-10 / B7IWWMS
0,5" x 1,5" (12,70 x 38,10)
1.4404 (316L)
SF1 Internal surface Ra ≤ 0,51µm
ASME BPE Certified
Tee BPE SF1 1/2" 12,7x1,65 316L
Pharmaceutical welding tee
Weld / Weld / Weld
DT-4.1.2-1 / B7WWW
0,5" (12,70 x 1,65)
1.4404 (316L)
SF1 Internal surface Ra ≤ 0,51µm
ASME BPE Certified
N/A
Endcap
DT-4.1.5-1 / B16W
0,5" (12,70 x 1,65)
1.4404 (316L)
SF1 Internal surface Ra ≤ 0,51µm
ASME BPE Certified
slide 1 of 1
Bend SC 90° 1/2" SF4 316L
Pharmaceutical bend Weld / Clamp
90° DT-4.1.1-2 / B2CMW
0,5" (12,70 x 1,65) 1.4404 (316L)
SF4 Internal surface Ra ≤ 0,38µm
Electropolished
ASME BPE Certified
