Product information
UHP Metal seal fitting
Male Nut
Head size: 1/8"
5/16"-24 UNF Threaded
316L Single melt
Properties
| Dimensions: | 1/8" (ø 3,18 mm) |
|---|---|
| Head size: | 1/8" |
| Material type: | 316L Single melt |
Product information
| Weight | 0 kg |
|---|---|
| Custom tariff code | 73072910 |

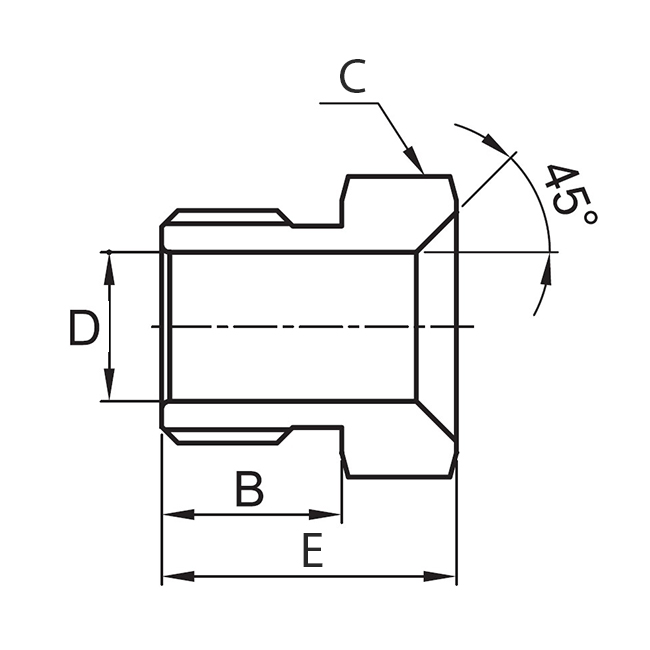

Dimensions
| Dimension A | |
|---|---|
| Dimension B | 8,2 |
| Dimension C | 9,52 |
| Dimension D | 5,3 |
| Dimension E | 12,7 |
Male Gland 1/8"-19,05 316L Double melt 0,13µ
UHP Metal seal fitting
Male gland
1/8" (3,18 x 0,70) L=19,05mm
Head size: 1/8" - Nut size: 1/8"
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
