Product information

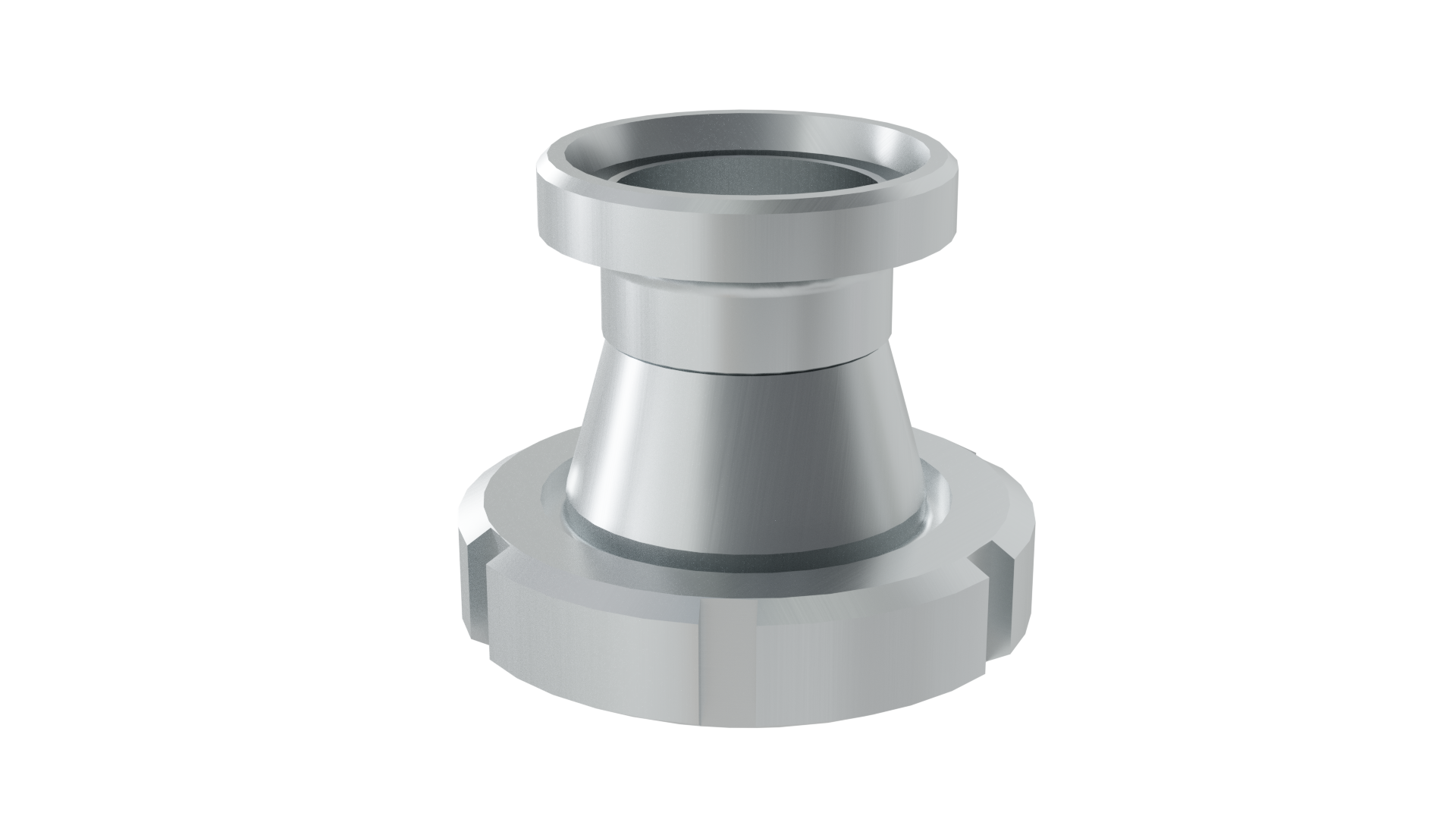

Connection reducer
Concentric (RC)
Outside matt
DN100 x 80 (104,00 x 85,00)
1.4307 (304L)
Liner nut / Male part
EN10374-A / DIN11852
Properties
| Dimensions: | DN100 (ø 104 mm) |
|---|---|
| Dimensions 2: | DN80 (ø 85) |
| Material type: | 304 (L) |
| External surface: | Mat |
| Connection: | Thread / Liner |
Product information
| Weight | 2.082 kg |
|---|---|
| Custom tariff code | 73072980 |

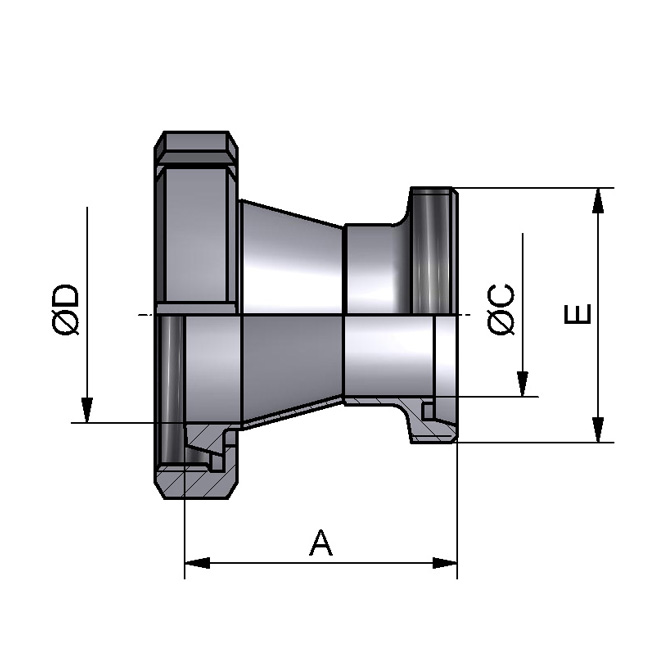

Dimensions
| Dimension A | 94 |
|---|---|
| Dimension B | |
| Dimension C | 81 |
| Dimension D | 100 |
| Dimension E |
