Product information
3-way L ball valve Kieselmann 4131
Male / male / male DIN11851
DN32 (35) 316 NBR
Air operated air/air
Properties
| Dimensions: | DN32 (ø 35 mm) |
|---|---|
| Connection: | Thread / Thread / Thread |
| Operating: | Pneumaticcaly operated Air open / Air closed |
| Elastomer: | PTFE / NBR |
| Type: | L - Bore |
Product information
| Weight | 7.835 kg |
|---|

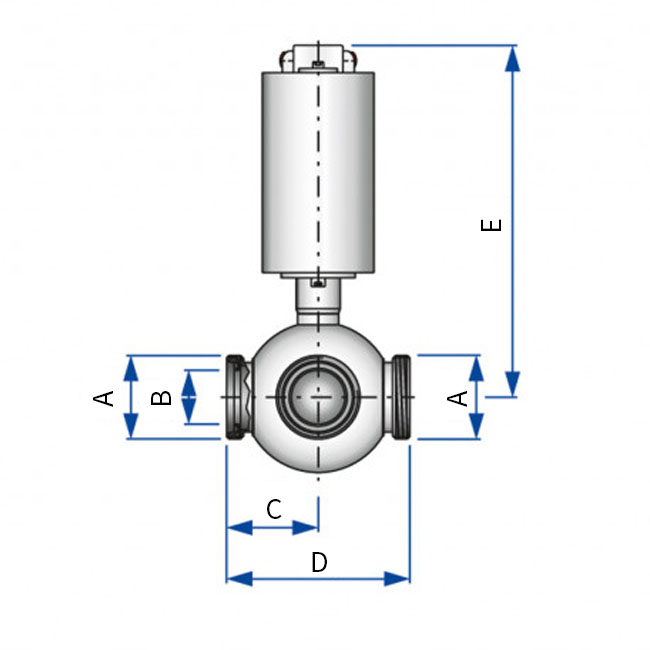

Dimensions
| Dimension A | Rd58x1/6" |
|---|---|
| Dimension B | 38 |
| Dimension C | 80 |
| Dimension D | 160 |
| Dimension E | 314 |
