Product information
Ball valve type SBV
DN40 (41) weld/weld,
316 EPDM
Actuator: NC - air open, spring close
for Thinktop
Properties
| Dimensions: | DN40 (ø 41 mm) |
|---|---|
| Operating: | Pneumaticcaly operated Air open / Spring closed |
| Elastomer: | EPDM |
Product information
| Weight | 9.511 kg |
|---|

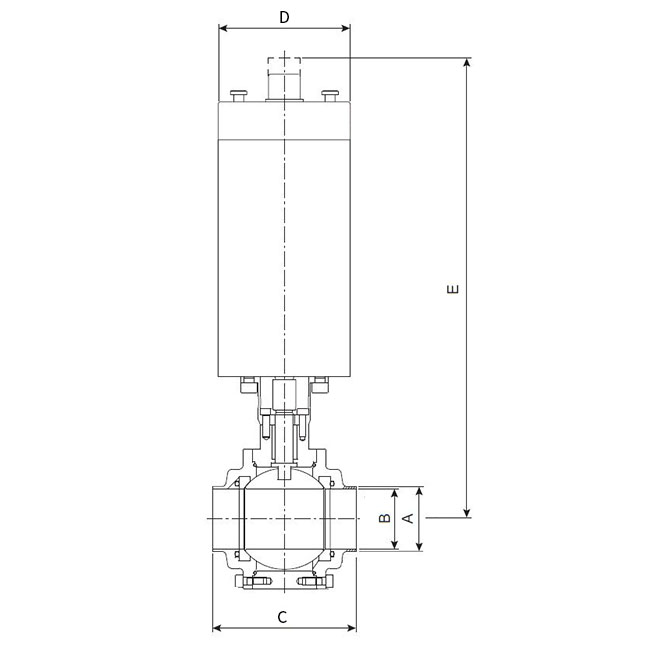

Dimensions
| Dimension A | 41 |
|---|---|
| Dimension B | 38 |
| Dimension C | 103 |
| Dimension D | 104 |
| Dimension E | 103 |
Alfa Laval ThinkTop V50
Control unit Thinktop V50
Type Digital PNP 24VDC
Containing 1 solenoid 3/2
Cable gland and Ø6mm air conn.
Thinktop V50 IO-Link 1SV 3/2 P
Control unit Thinktop V50
Type IO-Link 24VDC
Containing 1 solenoid 3/2
M12 plug and Ø6mm air conn.
Thinktop V50 AS-I V3.0 - 1MV 3/2 C
Control unit Thinktop V50
Type AS-Interface v3.0,62 node
29.5 - 31.6 VDC
Containing 1 solenoid 3/2
Cable gland and Ø6mm air conn.
