Product information
Ball valve M&S weld/weld
DN25 (29), 316L, PTFE/FEP
Actuator PAMS AO/SC
Properties
| Dimensions: | DN25 (ø 29 mm) |
|---|---|
| Connection: | Weld / Weld |
| Operating: | Pneumaticcaly operated Air open / Spring closed |
| Elastomer: | PTFE / FEP |
Product information
| Weight | 4.3 kg |
|---|---|
| Custom tariff code | 84818079 |
| 3.1 Certificate: | No |

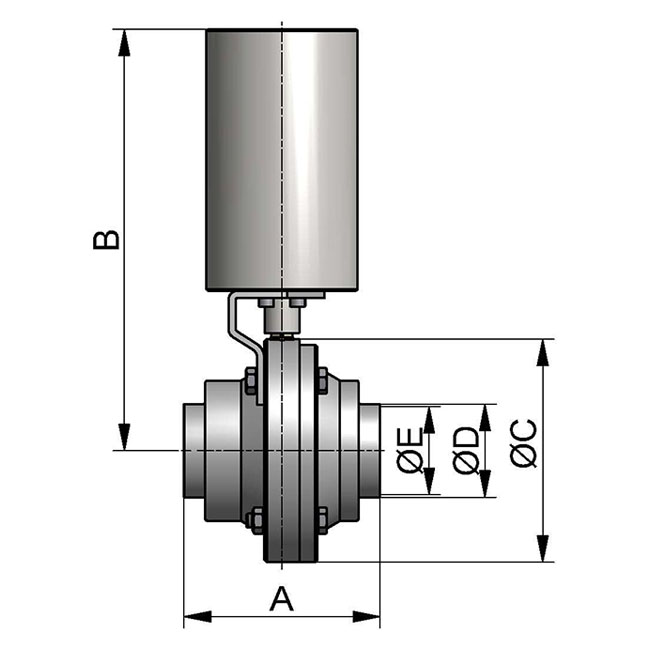

Dimensions
| Dimension A | 71 |
|---|---|
| Dimension B | 232 |
| Dimension C | 92 |
| Dimension D | 29 |
| Dimension E | 26 |
