M&S sampling
Applying the M&S Sampling Valves

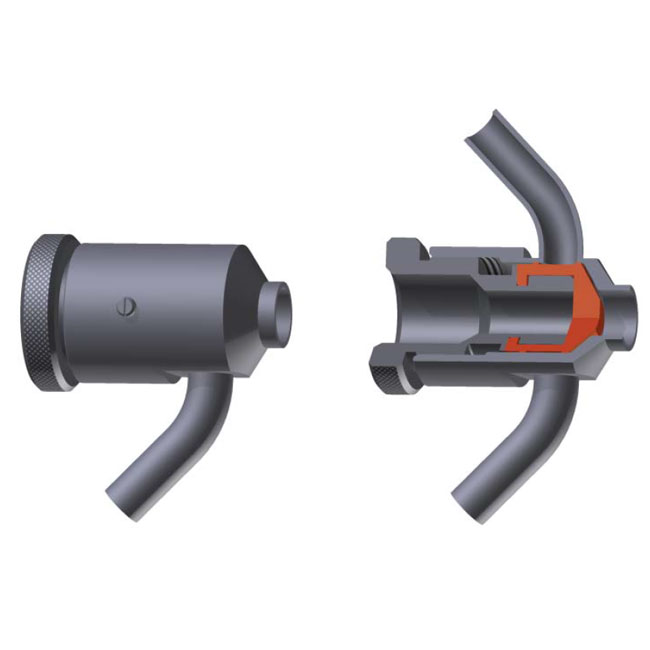

SKS has several M&S hygienic sampling valves in its collection. These are available in various designs. For example, they have a sampling valve with a simple O-ring but also hygienic version with a plug closure. The hygienic stainless steel sampling valve with plug seal makes it possible to take a sample with a syringe. In addition to these standard sampling taps, M&S has a further embodiment which is compatible with steam cleaning (SIP). This is especially suitable for the pharmaceutical industry. Furthermore they have a sampling valve which is torch ingot, that is to say that the spout of the faucet can be sterilized with fire. All sampling valves are easily controlled by a simple manual operation.
| Articlenr. | Description | Dimensions | Material type | Connection | Elastomer | Stock |
|---|---|---|---|---|---|---|
|
32134152MS
|
Micro Sample valve
MVQ (sil.) membrane NW15 304L
3.1 Certificate: No |
DN15 (ø 19 mm)
|
|
|
|
|
|
32134153MS
|
Micro Sample valve
EPDM membrane NW15 304L
3.1 Certificate: No |
DN15 (ø 19 mm)
|
|
|
|
|
|
32134252MS
|
Sample Valve DN15
EPDM O-Ring 304L Pol.
Weld connection
3.1 Certificate: No |
DN15 (ø 19 mm)
|
|
|
|
|
|
32138152MS
|
Micro Sample valve
MVQ (sil.) membrane NW15 316L
Without flush connection
3.1 Certificate: No |
DN15 (ø 19 mm)
|
|
|
|
|
|
32138159MS
|
Sample valve DN 40
316L POL. VMQ
3.1 Certificate: No |
DN40 (ø 41 mm)
|
|
|
|
|
|
32138252MS
|
Sample valve DN15
EPDM o-ring 316L Pol.
Weld connection
3.1 Certificate: No |
DN15 (ø 19 mm)
|
|
|
|
|
|
32138254MS
|
Sample valve DN15
EPDM o-ring 316L Pol.
O-ring and rinse
Weld connection
3.1 Certificate: No |
DN15 (ø 19 mm)
|
316 (L)
|
Weld / Weld
|
EPDM
|
|
|
32138255MS
|
Sample valve DN40
EPDM o-ring 316L Pol.
O-ring and rinse
Weld connection
3.1 Certificate: No |
DN40 (ø 41 mm)
|
316 (L)
|
Weld / Weld
|
EPDM
|
|
|
32148252MS
|
Sample valve DN15
FKM (Viton) o-ring 316L Pol.
Weld connection
3.1 Certificate: No |
DN15 (ø 19 mm)
|
|
|
|
|
|
32438002
|
Sample valve 1/4" 316L
Drain cock (bend)
3.1 Certificate: No |
|
|
|
|
|
|
32438003
|
Sample valve 3/8" 316L
Drain cock (bend)
3.1 Certificate: No |
|
|
|
|
|
|
32438004
|
Sample valve 1/2" 316L
Drain cock (bend)
3.1 Certificate: No |
|
|
|
|
|
| Articlenr. | Description | Dimension | Elastomer | Stock |
|---|---|---|---|---|
|
32981302MS
|
Spare part sampler
Membrane NW15-40 EPDM
|
|
|
|
|
32981301MS
|
Spare part samplevalve
Gasketset o-ring DN15-40 EPDM
|
|
|
|
|
32986355MS
|
Spare part sampling valve
Type 10950
Spare part set DN25 PTFE
|
|
|
|
|
32984300
|
Part Micro sampler
Gasket set NW15-40 MVQ (sil.) with plug
|
|
|
|
