Manhole covers
Round manholes are usually placed on the top of the tank. They serve to easily and quickly inspect the contents of your tank. SKS offers a wide range of round stainless steel manholes. The covers are available with different types of handles
and various editions. Whenever a tank needs to be optimally protected against over pressure and/or under pressure such as vacuum SKS has various tank safety systems available.
| Articlenr. | Description | Brand | Material type | Diameter | Neck height | Stock |
|---|---|---|---|---|---|---|
|
37314240
|
Manwaydoor round, type 240
Ø306 H=65 Pmax 0,1 bar
304 NBR
|
Zorzini
|
304 (L)
|
306 mm
|
65 mm
|
|
|

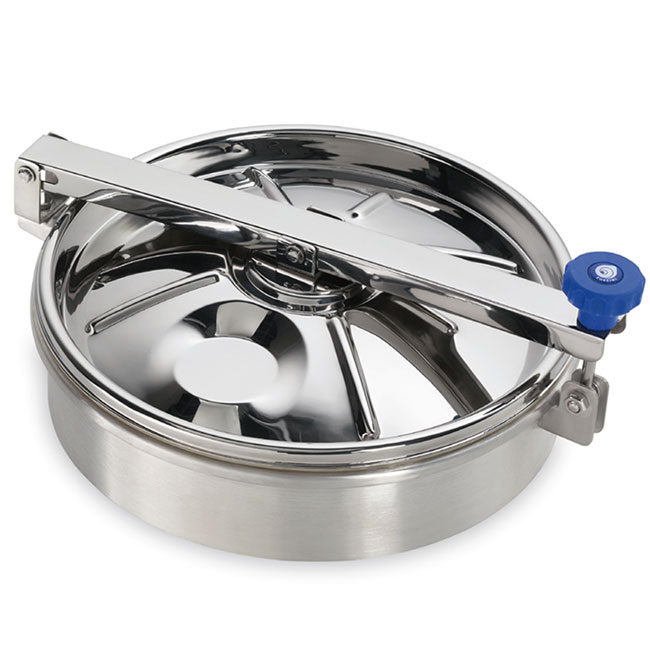

373146V251
|
Manway cover round 404 mm
Type 6V/251
H=100 mm, P.max 1.2 bar
NBR 304
|
Zorzini
|
304 (L)
|
404 mm
|
100 mm
|
|
|

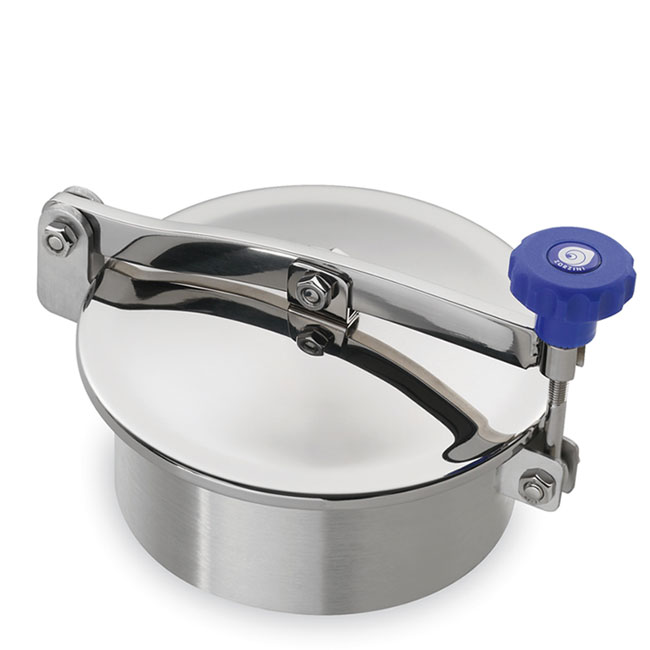

37314N230
|
Manwaydoor round N/230
Ø202 H=85 Pmax 0,5 bar
304 NBR
|
Zorzini
|
304 (L)
|
202 mm
|
85 mm
|
|
|
37314TV501
|
Manwaydoor round TV/501
Ø520 H=150 Pmax 0,0 bar
304 NBR
|
Zorzini
|
304 (L)
|
520 mm
|
150 mm
|
|
|
37318275B
|
Manwaydoor round 275/B
Ø518 H=75 Pmax 0,2 bar
316L NBR
|
Zorzini
|
316 (L)
|
518 mm
|
75 mm
|
|
|
37318N240B
|
Manholecover Zorzini type N240/4V
NBR 316 max. press. 0,2 bar ø404
height = 65mm
|
|
|
404 mm
|
65 mm
|
|
|
37318N271B
|
Manwaydoor round N/271/B
Ø520 H=100 Pmax 0,1 bar
316L NBR
|
Zorzini
|
316 (L)
|
520 mm
|
100 mm
|
|
|
37318T450B
|
Manholecover Zorzini type T/450
NBR 316 ø454 height = 100mm
SS handwheel
|
Zorzini
|
316 (L)
|
454 mm
|
100 mm
|
|
|
37319T1302B
|
Handwaydoor round T1/302/B
Ø306 H=150 Pmax 0,1 bar
316L MVQ
SS Handwheel
|
Zorzini
|
316 (L)
|
306 mm
|
150 mm
|
|
|
37319T1401B
|
Handwaydoor round T1/401/B
Ø404 H=100 Pmax 0,1 bar
316L MVQ
SS Handwheel
|
Zorzini
|
316 (L)
|
404 mm
|
100 mm
|
|
|
37319T1402B
|
Handwaydoor round T1/402/B
Ø404 H=150 Pmax 0,1 bar
316L MVQ
SS Handwheel
|
Zorzini
|
316 (L)
|
404 mm
|
150 mm
|
|
|
373236V250
|
Manway cover round 404 mm
Type 6V/250
H=65 mm, P.max 1.2 bar
NBR 304
|
Zorzini
|
304 (L)
|
404 mm
|
65 mm
|
|
| Articlenr. | Description | Dimension | Elastomer | Stock |
|---|---|---|---|---|
|
37304110
|

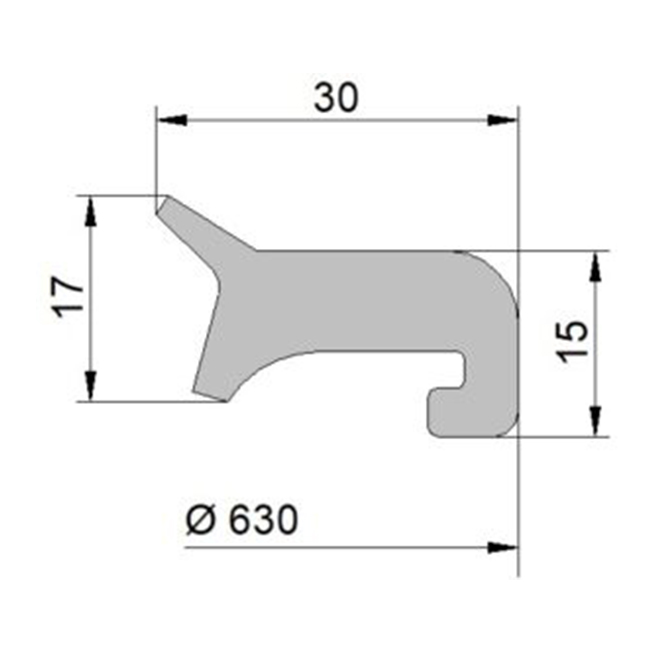

Gasket G/T600
FKM (Viton) 620 mm
for manwaydoor type:
T1/60*(B), 8V/60*(B), TV60*(B) en T60*(B)
|
|
|
|
|
37301240AL
|
Manway cover LKDC
gasket
400 mm EPDM
|
|
|
|
|
37401110LA
|
NBR gasket for D3 Ø600
|
|
|
|
|
37301420
|
Gasket NBR
for manwaydoor 420
|
|
|
|
|
37303111
|

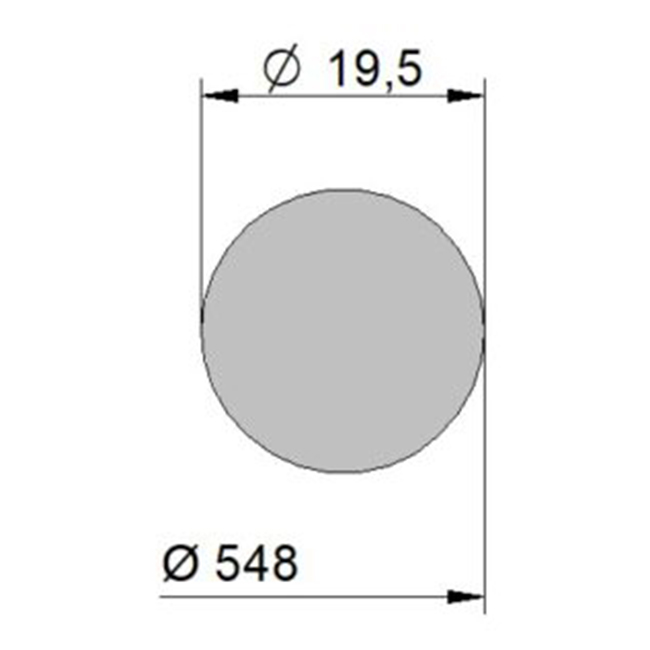

Gasket G/TR500 EPDM
520 mm
for manwaydoor 270, 270/T, N/270 and 275
|
|
|
|
|
373389300GRIL
|
Safety grid Manhole
ø296 316 rectangular bore
|
|
|
|
|
37100503AL
|
Manholecover part
Relief valve 1.25" BSp
|
|
|
|
|
37301305
|

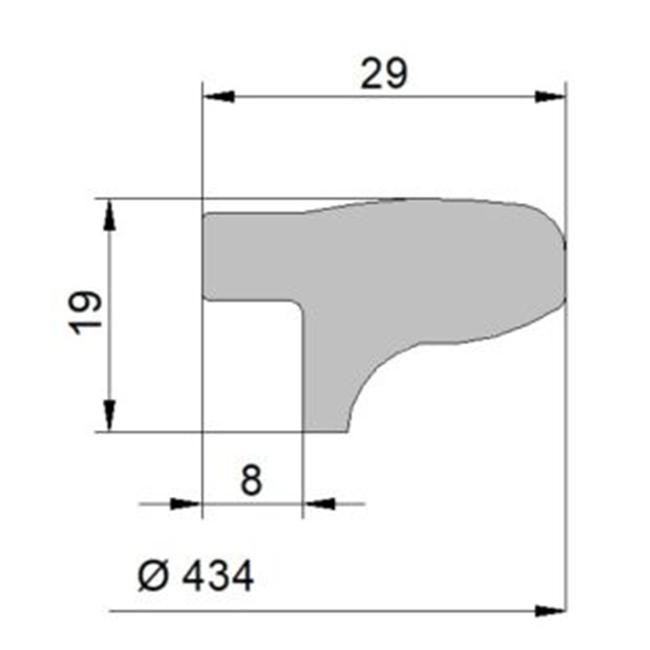

Manhole seal Zorzini 400AZ/NL NBR Perbunan
|
|
|
|
|
37305306
|
Manhole seal Zorzini 400AZ/GN MVQ (Silicone)
|
|
|
|
|
373389500GRIL
|
Safety grid Manhole
ø500 316 rectangular bore
|
|
|
|
|
AL9611700590
|
Spare part Alfa Laval
swing bolt lkdc 430mm
|
|
|
|
|
37303013
|

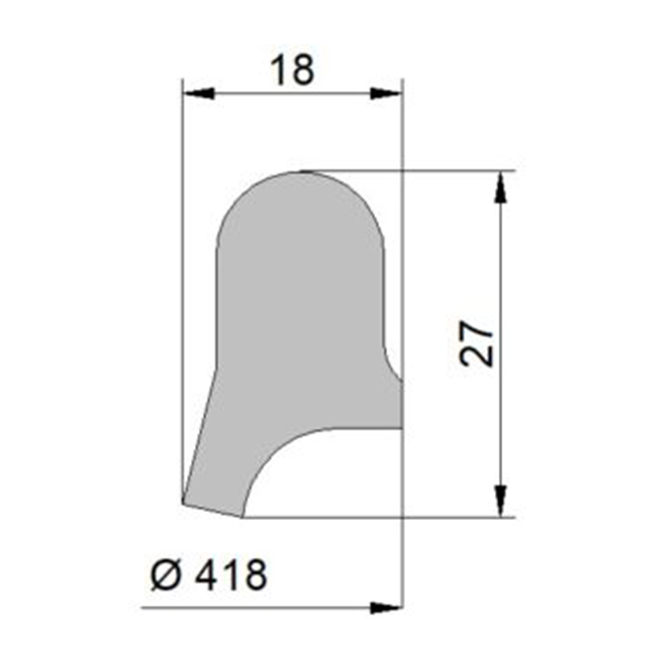

Gasket G AE 400mm EPDM
for manway door 250, 255 and N/250
>2009
|
|
|
|
