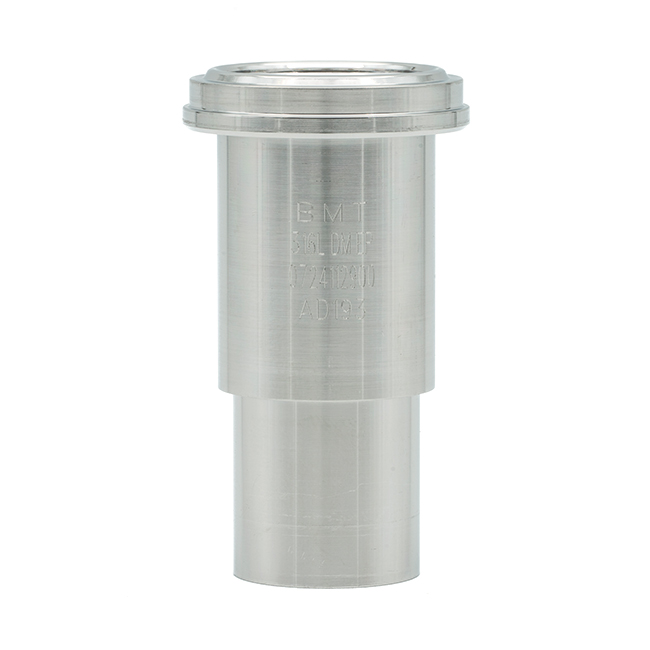

Male Gland
Metal Seal Fittings
BMT Vacuum Coupling (BVC, also known as VCR) fittings provide a robust, metal-sealed connection that is ideal for applications where ultra-high purity and leak-tightness are essential. Thanks to the unique design with a shear seal and stainless steel construction, BVC fittings ensure consistent, reliable performance even under extreme pressure and temperature conditions. With a wide range of configurations and materials, BVC fittings support critical processes in the semiconductor, TFT/LCD, solar, and related industries. Choose the quality and expertise of BMT to ensure optimal performance and safety for your system.
Specifications:
- Sizes: 1/8” – 1”
- Material: 316L, 316L VIM/VAR (Double Melt) (product contact parts)
- Surface Finish: Ra ≤ 0.25µm standard passivated, or Ra ≤ 0.13µm electropolished
- Custom versions available on request
The fittings are cleaned and packaged under cleanroom conditions. Additionally, they are suitable for processing with orbital welding equipment.
Certificates:
MTR (Mill Test Report) or 3.1 certificate according to EN 10204 (product contact parts)
| Articlenr. | Description | Dimensions | Material type | Internal surface | External | Stock |
|---|---|---|---|---|---|---|
|
7202602201
|
UHP Metal seal fitting
Male gland
1/8" (3,18 x 0,70) L=19,05mm
Head size: 1/8" - Nut size: 1/8"
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/8" (ø 3,18 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
Electro polished (EP)
|
|
|
7202602203
|
UHP Metal seal fitting
Male gland
1/4" (6,35 x 0,89) L=6,35mm
Head size: 1/4" - Nut size: 1/4"
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/4" (ø 6,35 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
Electro polished (EP)
|
|
|
7202602205
|
UHP Metal seal fitting
Male gland
1/4" (6,35 x 0,89) L=10,00mm
Head size: 1/4" - Nut size: 1/4"
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/4" (ø 6,35 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
Electro polished (EP)
|
|
|
7202602207
|
UHP Metal seal fitting
Male gland
1/4" (6,35 x 0,89) L=19,05mm
Head size: 1/4" - Nut size: 1/4"
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/4" (ø 6,35 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
Electro polished (EP)
|
|
|
7202602209
|
UHP Metal seal fitting
Male gland
3/8" (9,53 x 1,24) L=6,35mm
Head size: 1/2" - Nut size: 1/2"
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/2" (ø 12,7 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
Electro polished (EP)
|
|
|
7202602211
|
UHP Metal seal fitting
Male gland
3/8" (9,53 x 1,24) L=10,00mm
Head size: 1/2" - Nut size: 1/2"
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/2" (ø 12,7 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
Electro polished (EP)
|
|
|
7202602213
|
UHP Metal seal fitting
Male gland
3/8" (9,53 x 1,24) L=19,05mm
Head size: 1/2" - Nut size: 1/2"
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/2" (ø 12,7 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
Electro polished (EP)
|
|
|
7202602215
|
UHP Metal seal fitting
Male gland
1/2" (12,7 x 1,24) L=6,35mm
Head size: 1/2" - Nut size: 1/2"
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/2" (ø 12,7 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
Electro polished (EP)
|
|
|
7202602217
|
UHP Metal seal fitting
Male gland
1/2" (12,7 x 1,24) L=10,00mm
Head size: 1/2" - Nut size: 1/2"
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/2" (ø 12,7 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
Electro polished (EP)
|
|
|
7202602219
|
UHP Metal seal fitting
Male gland
1/2" (12,7 x 1,24) L=19,05mm
Head size: 1/2" - Nut size: 1/2"
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/2" (ø 12,7 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
Electro polished (EP)
|
|
|
7202602221
|
UHP Metal seal fitting
Male gland
3/4" (19,05 x 1,65) L=19,05mm
Head size: 3/4" - Nut size: 3/4"
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
3/4" (ø 19,05 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
Electro polished (EP)
|
|
|
7202602223
|
UHP Metal seal fitting
Male gland
1" (25,4 x 1,65) L=19,05mm
Head size: 1" - Nut size: 1"
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1" (ø 25,4 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
Electro polished (EP)
|
|
