Product information
Kieselmann butterfly valve 4510
Flange / Flange
DN200 (204) 1.4404 (316L)
EPDM
Including actuator
Air open / spring closed (NC)
Stainless steel 304
Prepared for indication: yes, M12
Prepared for control unit: yes
Properties
| Dimensions: | DN200 (ø 204 mm) |
|---|---|
| Material type: | 316 (L) |
| Connection: | Flange / Flange |
| Elastomer: | EPDM |
Product information
| Weight | 42.92 kg |
|---|

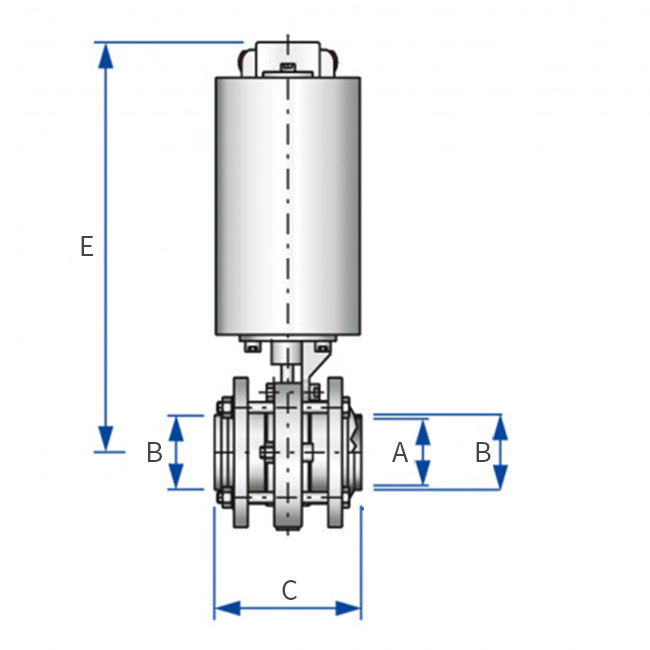

Dimensions
| Dimension A | 200 |
|---|---|
| Dimension B | 204 |
| Dimension C | 258 |
| Dimension D | |
| Dimension E | 456 |
