M&S SV04 body

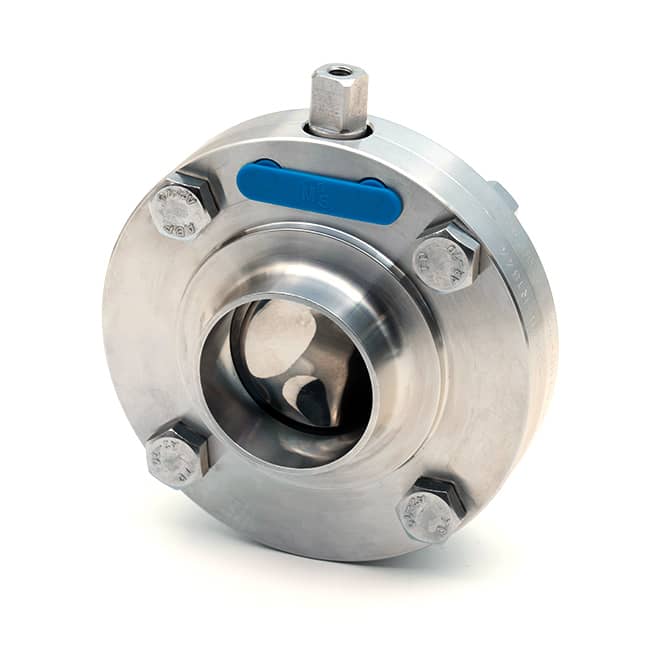

Applying the M&S Butterfly Valve SV04
The M&S Butterfly Valve SV04 is the latest generation butterfly valve from M&S Armaturen and meets all current requirements. The seal shape and shaft construction with bushes are compared to the previous model ('95 and '98). On top of these characteristics the valve has designed conform EHEDG. Technically, the valve meets all requirements and can even with the T-profile seal, to be used for full vacuum. The SV04 has a good ability to be dismantled.
S.K.S. performs the valve without operating as a stock item and can be combined with the correct entry with all ministries. The valves and seals are marked and equipped with numbers, size and batch number. A complete valve 3.1B certificate is possible. All the seals are made of EN-1935 and FDA approved materials. The flexibility of M&S Armaturen makes it possible to produce the valves completely to customer requirements (special connectors or mounting dimensions).
The M&S butterfly valve is the first one in the whole world with a DIN 11864 / DIN 11853 thread connections. That makes the SV04 compatible for ultra hygienic processes.
In addition, M&S Armaturen has a multiway or leak detection execution. Unique features of the M&S butterfly valve SV04 are:
- conform EHEDG (including flange connection)
- Unique manual handle
- Compact design
- Simple and safe construction for mounting position report
- Compatible with previous versions (Type 95 and 98)
- Internal roughness <0.8 µm
- Duplex (robust) lantern to build actuator
- Available in sizes DN15 - DN200 and 1" - 4"
- Distinctive look
- DIN 11864 thread connection
- DIN 11853 thread connection
| Articlenr. | Description | Dimensions | Material type | Connection | Elastomer | Stock |
|---|---|---|---|---|---|---|
|
25123002MS
|
M&S butterfly valve SV04
Weld / Weld
DN15 (19) 1.4307 (304L)
HNBR
Excluding handle
|
DN15 (ø 19 mm) | 304 (L) | Weld / Weld |
|
|
|
25123003MS
|
M&S butterfly valve SV04
Weld / Weld
DN20 (23) 1.4307 (304L)
HNBR
Excluding handle
|
DN20 (ø 23 mm) | 304 (L) | Weld / Weld | HNBR |
|
|
25123004MS
|
M&S butterfly valve SV04
Weld / Weld
1" (25,40) 1.4307 (304L)
HNBR
Excluding handle
|
1" (ø 25,4 mm) | 304 (L) | Weld / Weld | HNBR |
|
|
25123005MS
|
M&S butterfly valve SV04
Weld / Weld
DN25 (29) 1.4307 (304L)
HNBR
Excluding handle
|
DN25 (ø 29 mm) | 304 (L) | Weld / Weld | HNBR |
|
|
25123007MS
|
M&S butterfly valve SV04
Weld / Weld
DN32 (35) 1.4307 (304L)
HNBR
Excluding handle
|
DN32 (ø 35 mm) | 304 (L) | Weld / Weld | HNBR |
|
|
25123008MS
|
M&S butterfly valve SV04
Weld / Weld
1,5" (38,10) 1.4307 (304L)
HNBR
Excluding handle
|
1,5" (ø 38,1 mm) | 304 (L) | Weld / Weld | HNBR |
|
|
25123009MS
|
M&S butterfly valve SV04
Weld / Weld
DN40 (41) 1.4307 (304L)
HNBR
Excluding handle
|
DN40 (ø 41 mm) | 304 (L) | Weld / Weld | HNBR |
|
|
25123010MS
|
M&S butterfly valve SV04
Weld / Weld
2" (50,80) 1.4307 (304L)
HNBR
Excluding handle
|
2" (ø 50,8 mm) | 304 (L) | Weld / Weld | HNBR |
|
|
25123011MS
|
M&S butterfly valve SV04
Weld / Weld
DN50 (53) 1.4307 (304L)
HNBR
Excluding handle
|
DN50 (ø 53 mm) | 304 (L) | Weld / Weld | HNBR |
|
|
25123012MS
|
M&S butterfly valve SV04
Weld / Weld
2,5" (63,50) 1.4307 (304L)
HNBR
Excluding handle
|
2,5" (ø 63,5 mm) | 304 (L) | Weld / Weld | HNBR |
|
|
25123013MS
|
M&S butterfly valve SV04
Weld / Weld
DN65 (70) 1.4307 (304L)
HNBR
Excluding handle
|
DN65 (ø 70 mm) | 304 (L) | Weld / Weld | HNBR |
|
|
25123014MS
|
M&S butterfly valve SV04
Weld / Weld
3" (76,10) 1.4307 (304L)
HNBR
Excluding handle
|
3" (ø 76,1 mm) | 304 (L) | Weld / Weld | HNBR |
|
| Articlenr. | Description | Dimension | Elastomer | Stock |
|---|---|---|---|---|
|
27500297MS
|
Servicekit butterfly valve
Classic NW80 EPDM F/F
|
|
|
|
|
27138116MS
|
Butterfly valve part SV04/95
Valve disc 4" 316L
|
|
|
|
|
27502011MS
|
Service kit for SV04 F/F
HNBR DN50
|
|
|
|
|
27138112MS
|
Butterfly valve part SV04/95
Valve disc 2 1/2" 316L
|
|
|
|
|
27833029MS
|
M&S actuator
PAMS-0
Butterfly valve SV04 DN15-50 / 1"-2"
Butterfly valve BaseCom DN15-50
Air open / air closed
Stainless steel 304
Prepared for indication: no
Prepared for control unit: yes
|
|
|
|
|
27700237MS
|
Butterfly valve gasket Type 95/04
2 1/2" MVQ (Silicone)
|
|
|
|
|
27700287MS
|
Butterfly valve gasket Type 95/04
2 1/2" EPDM
|
|
|
|
|
MS030522402120
|
Spare part M&S butterfly valve
Seal plate blue for mounting bracket
DN15-32
|
|
|
|
|
27134108MS
|
Butterfly valve part SV04/95
Valve disc 1.5" 304L
|
|
|
|
|
27900140MS
|
Mounting bracket
for prox.switch M12x1
For butterfly valve: n.a.
For ball valve: DN80
|
|
|
|
|
27100245MS
|
Butterfly valve gasket SV04/98
DN150 MVQ (Sil.)
|
|
|
|
|
MS030522003020
|
Spare part M&S butterfly valve
Plastic plug
bottom valve
DN80-100
|
|
|
|
Material |
|
| Product contact parts | Stainless steel 304(L) W.St. 1.4301 or 316L 1.4404 |
| ID finish | Ra <0.8 μm |
| Other stainless steel parts | W.St. 1.4301 / AISI 304 |
| Standard seal | EPDM |
| Type of seal (Valve) | T-profile |
| Type of seal (Flange) | DIN11864-A |
| Bearing bushing | Yes, lower and upper are the same |
| Max. working pressure | 10 bar |
| Min. working pressure | Vacuum |
| Max. temperature | Depends on elastomer |
| Sizes | Weld/Weld DN15 - DN150, 1” - 4” and ISO 33,7 - 114,3 |
| DIN sizes | DIN : DN15 -150, DN200 only flange/flange |
| Inch sizes | Inch : 1” – 4” |
| ISO sizes | Mm : 33,7 – 114,3 |
| Seal options | EPDM, VMQ (Silicon), FKM (Viton), HNBR |
Version |
|
| Connections | Weld, Thread, Pointed area/Nut, Flange and Clamp ferrule |
| DIN11851, DIN11853, DIN11864, DIN32676, ISO 2852 | |
| EN1092, SMS, IDF, DS, BSP, etc. | |
| On requirement of the customers draw | |
| Standard operating | Manual operated (two positions) |
| Adjustable stepless handle | |
| Hand operated with positioners | |
| Pneumatical operating | Double air, air / spring (three versions) |
| Required air pressure | Depends on type of actuator |
| Positioner | Standard prepaired in bracket (M12) |
| Options | Actuator with positioner |
| Electrical actuator | |
| Control unit | |
| Open/close indicator (CE) | |
| Kinetrol actuator | |
| Adjustable on demand | |
| Lock-out/tag-out manual operated | |
| ATEX | |
Maintenance |
|
| Revision/dissambly | Between flange model can be disassembled |
| Other models are shut out of revision | |
| Special tools required | No |
Unique |
|
| Hand-operated | Plastic head (hygienic and distinctive) |
| Pneumatical-operated | Multi spring unit |
| Lantern piece | Prepared for position indication |
| Between flange version | Compact model (hygienic) |
| Special version with centering | |
| All of the valves are tested of leackage at a pressure of 10 bar | |
