Product information
Kieselmann butterfly valve 4552
Weld / Male part
2" (50,80) 1.4404 (316L)
EPDM
Including actuator
Air open / spring closed (NC)
Stainless steel 304
Prepared for indication: yes, M12
Prepared for control unit: yes
Properties
| Dimensions: | 2" (ø 50,8 mm) |
|---|---|
| Material type: | 316 (L) |
| Connection: | Weld / Thread |
| Elastomer: | EPDM |
Product information
| Weight | 6.5 kg |
|---|---|
| Custom tariff code | 84818085 |

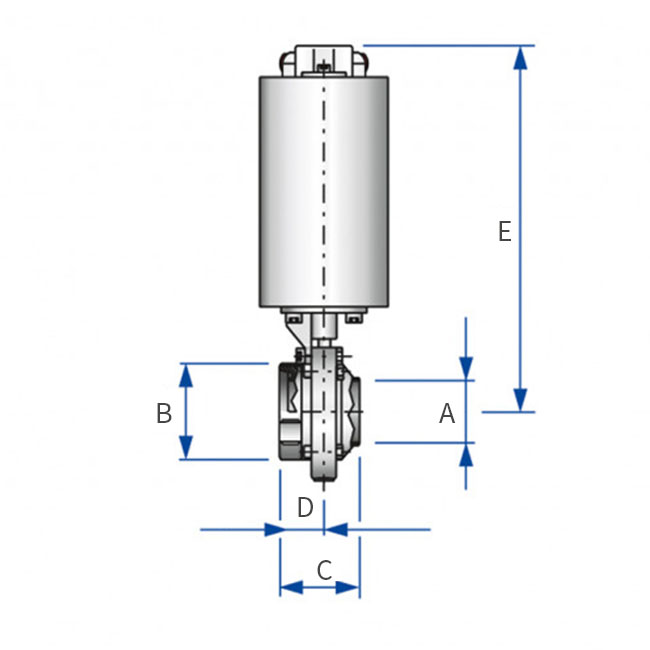

Dimensions
| Dimension A | 47,5 |
|---|---|
| Dimension B | R78x1/6"" |
| Dimension C | 65 |
| Dimension D | 29 |
| Dimension E | 109 |
BV 4352 -/-O W/M 2" EPDM 316

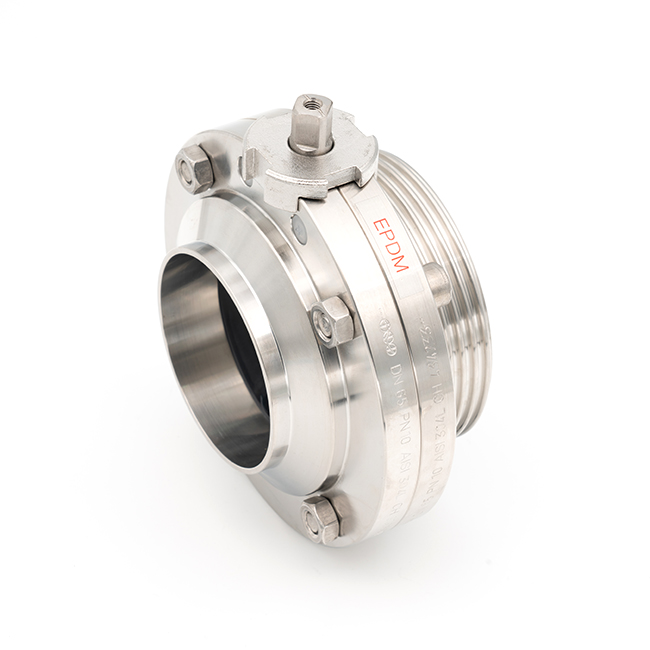

Kieselmann butterfly valve 4352
Weld / Male part
2" (50,80) 1.4404 (316L)
EPDM
Excluding handle
Act KI 4200 AOSC DN 25-100 304
Kieselmann actuator 4200
Butterfly valve DN25-DN100 / 1"-4"
Leakage butterfly valve DN50-DN80
Ball valve 2-way DN25-DN80
Ball valve 3-way DN25-DN65
Air open / spring closed
Stainless steel 304
Excluding. mounting kit
