Product information
Inoxpa butterfly valve A490
Flange / Flange
3" (76,10) 1.4404 (316L)
EPDM
Including actuator A940 T2
Air open / spring closed (NC)
Prepared for indication: no
Prepared for control unit: no
Properties
| Dimensions: | 3" (ø 76,1 mm) |
|---|---|
| Material type: | 316 (L) |
| Connection: | Flange / Flange |
| Operating: | Pneumaticcaly operated Air open / Spring closed |
| Elastomer: | EPDM |
Product information
| Weight | 8.75 kg |
|---|---|
| Custom tariff code | 84818085 |

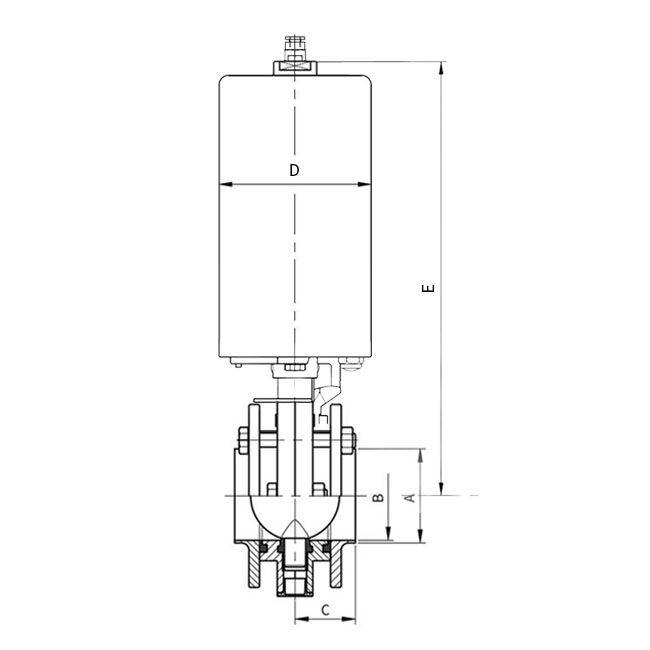

Dimensions
| Dimension A | 76,1 |
|---|---|
| Dimension B | 72,9 |
| Dimension C | 36 |
| Dimension D | 88,5 |
| Dimension E | 263 |
