Product information
Inoxpa butterfly valve A480
Weld / Weld
3" (76,10) 1.4307 (304L)
MVQ (Siliconen)
Including actuator A940 T2
Air open / spring closed (NC)
Prepared for indication: no
Prepared for control unit: no
Properties
| Dimensions: | 3" (ø 76,1 mm) |
|---|---|
| Material type: | 304 (L) |
| Connection: | Weld / Weld |
| Operating: | Pneumaticcaly operated Air open / Spring closed |
| Elastomer: | MVQ (Silicone) |
Product information
| Weight | 6.02 kg |
|---|

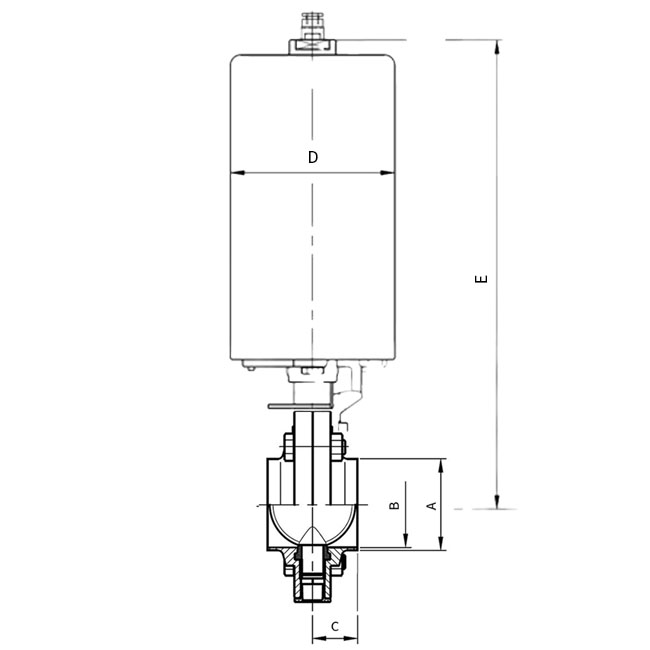

Dimensions
| Dimension A | 76,2 |
|---|---|
| Dimension B | 72,9 |
| Dimension C | 25 |
| Dimension D | 88,5 |
| Dimension E | 263 |
VKL klepz.Inoxpa mod.2020 3" MVQ
Spare part Inoxpa butterfly valve
Seal ring Mod. 2020 VMQ (Siliconen) 3"
