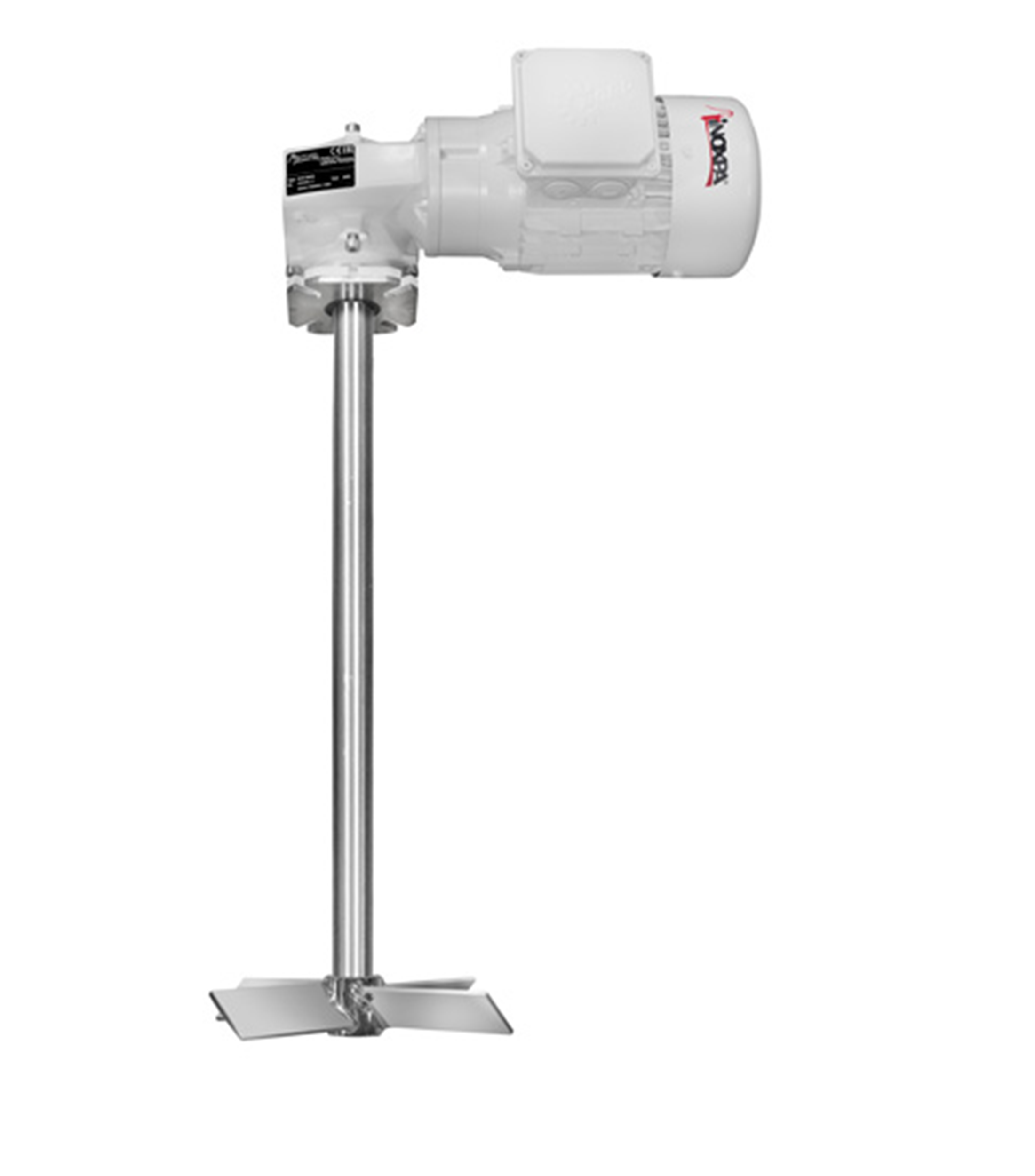

Inoxpa NHS Vertical Agitator

The NHS agitators are vertical units equipped with a worm gearmotor, ideal for mixing, dissolution, and maintenance processes requiring mild to medium agitation. Designed for the food-processing, cosmetic, and pharmaceutical industries, these agitators come with industry-specific finishes.

Suitable for tanks up to 10,000 liters, the NHS agitators handle products with medium to high viscosity. They can be installed centrally with baffles or offset to prevent product rotation. The propeller's rotation directs the fluid to the tank's bottom and then up along the walls to the surface. This effect is enhanced in tanks with a curved bottom.

Features:

Vertical agitator,
Sealing: splash ring and lip seal,
Propeller fixed to the shaft by Allen cap screws,
Worm gear motor with smooth surfaces and food-grade oil,
IEC, IP55, F-class insulation,
Propeller with 4 inclined blades (T11).

Materials:

Parts in contact with the product: AISI 316,
Lip seal: NBR,
Gear housing: aluminium,
Surface finish: Ra < 0.8 μm.

Options:

FPM lip seal (FDA),
Shaft and propeller lined with plastic material for use with corrosive products,
Welded propeller with Ra ≤ 0,5 μm surface finish,
Propeller with 2 inclined blades (T6),
Gamma propeller (T16),
High flow propeller (T19),
Geared motor shroud,
Other motor protections available on request.

Downloads:

Datasheet - Inoxpa NHS

Manual - Inoxpa NHS
