Micro Reducer
Micro Weld Fittings (Reducer)
A miniature version of the standard weld fitting, more compact and smaller than the larger orbital weld fittings. Micro Fittings have a compact design, making them more suitable for smaller assemblies and more compact placement of components while maintaining the same flow and performance compared to other fittings.
Specifications:
- Sizes: 1/8” – 3/4”
- Material: 316L, 316L VIM/VAR (Double Melt) (product contact parts)
- Surface Finish: Ra ≤ 0.25µm standard passivated, or Ra ≤ 0.13µm electropolished
- Custom versions available on request
The fittings are cleaned and packaged under cleanroom conditions. Additionally, they are suitable for processing with orbital welding equipment.
Certificates:
MTR (Mill Test Report) or 3.1 certificate according to EN 10204 (product contact parts)

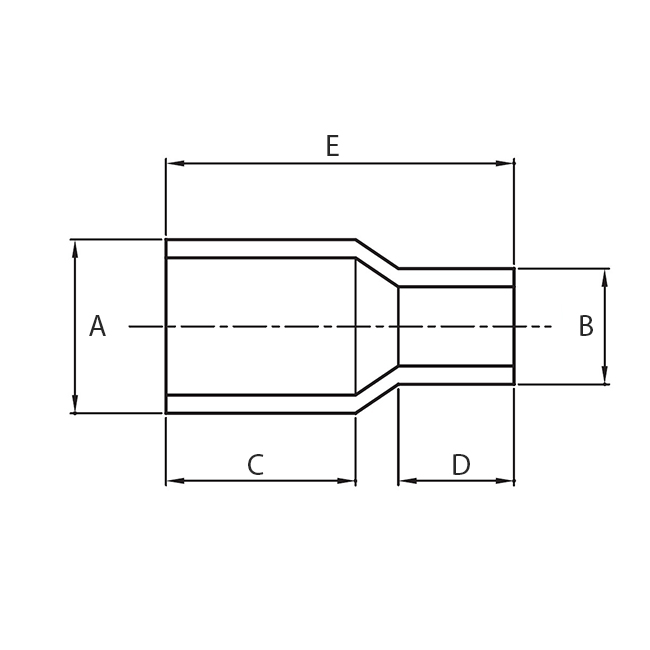

| Articlenr. | Description | Dimensions | Dimensions 2 | Material type | Internal surface | Stock |
|---|---|---|---|---|---|---|
|
7201501101
|
UHP Micro fitting
Welding reducer
1/4"x1/8" (6,35 x 0,89 / 3,18 x 0,70)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
1/4" (ø 6,35 mm)
|
1/8" (ø 3,18 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201501103
|
UHP Micro fitting
Welding reducer
3/8"x1/4" (9,53 x 0,89 / 6,35 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
3/8" (ø 9,53 mm)
|
1/4" (ø 6,35 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201501105
|
UHP Micro fitting
Welding reducer
1/2"x1/4" (12,7 x 1,24 / 6,35 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
1/2" (ø 12,7 mm)
|
1/4" (ø 6,35 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201501107
|
UHP Micro fitting
Welding reducer
1/2"x3/8" (12,7 x 1,24 / 9,53 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
1/2" (ø 12,7 mm)
|
3/8" (ø 9,53 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201501109
|
UHP Micro fitting
Welding reducer
3/4"x1/4" (19,05 x 1,65 / 6,35 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
3/4" (ø 19,05 mm)
|
1/4" (ø 6,35 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201501111
|
UHP Micro fitting
Welding reducer
3/4"x3/8" (19,05 x 1,65 / 9,53 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
3/4" (ø 19,05 mm)
|
3/8" (ø 9,53 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201501113
|
UHP Micro fitting
Welding reducer
3/4"x1/2" (19,05 x 1,65 / 12,7 x 1,24)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
3/4" (ø 19,05 mm)
|
1/2" (ø 12,7 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201601201
|
UHP Micro fitting
Welding reducer
1/4"x1/8" (6,35 x 0,89 / 3,18 x 0,70)
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/4" (ø 6,35 mm)
|
1/8" (ø 3,18 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
|
|
7201601203
|
UHP Micro fitting
Welding reducer
3/8"x1/4" (9,53 x 0,89 / 6,35 x 0,89)
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
3/8" (ø 9,53 mm)
|
1/4" (ø 6,35 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
|
|
7201601205
|
UHP Micro fitting
Welding reducer
1/2"x1/4" (12,7 x 1,24 / 6,35 x 0,89)
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/2" (ø 12,7 mm)
|
1/4" (ø 6,35 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
|
|
7201601207
|
UHP Micro fitting
Welding reducer
1/2"x3/8" (12,7 x 1,24 / 9,53 x 0,89)
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/2" (ø 12,7 mm)
|
3/8" (ø 9,53 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
|
|
7201601209
|
UHP Micro fitting
Welding reducer
3/4"x1/4" (19,05 x 1,65 / 6,35 x 0,89)
316L Double melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
3/4" (ø 19,05 mm)
|
1/4" (ø 6,35 mm)
|
316L Double melt
|
Ra ≤ 0,13µm
|
|
