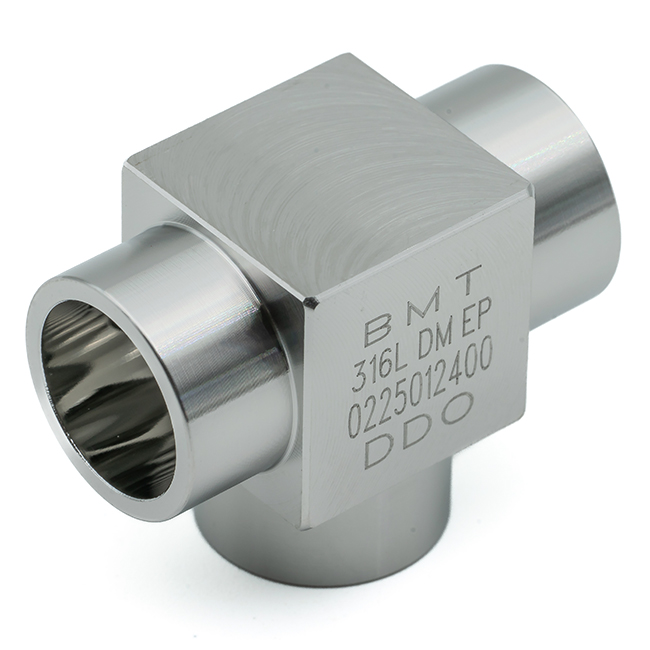

Micro Tee

Micro Weld Fittings (Tee)

A miniature version of the standard weld fitting, more compact and smaller than the larger orbital weld fittings. Micro Fittings have a compact design, making them more suitable for smaller assemblies and more compact placement of components while maintaining the same flow and performance compared to other fittings.

Specifications:

Sizes: 1/8” – 3/4”
Material: 316L, 316L VIM/VAR (Double Melt) (product contact parts)
Surface Finish: Ra ≤ 0.25µm standard passivated, or Ra ≤ 0.13µm electropolished
Custom versions available on request

The fittings are cleaned and packaged under cleanroom conditions. Additionally, they are suitable for processing with orbital welding equipment.

Certificates:
MTR (Mill Test Report) or 3.1 certificate according to EN 10204 (product contact parts)

Read more Read less

Log in or create an account to see prices and stock.

Articlenr.	Description	Dimensions	Material type	Internal surface	External
7201505101	Micro Tee 1/8" 316L Single melt 0,25µm UHP Micro fitting Welding Tee 1/8" (3,18 x 0,70) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated 3.1 Certificate: Yes Alternative products Alternative products Loading...	1/8" (ø 3,18 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201505103	Micro Tee 1/4" 316L Single melt 0,25µm UHP Micro fitting Welding Tee 1/4" (6,35 x 0,89) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated 3.1 Certificate: Yes Alternative products Alternative products Loading...	1/4" (ø 6,35 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201505105	Micro Tee 3/8" 316L Single melt 0,25µm UHP Micro fitting Welding Tee 3/8" (9,53 x 0,89) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated 3.1 Certificate: Yes Alternative products Alternative products Loading...	3/8" (ø 9,53 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201505107	Micro Tee 1/2" 316L Single melt 0,25µm UHP Micro fitting Welding Tee 1/2" (12,7 x 1,24) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated 3.1 Certificate: Yes Alternative products Alternative products Loading...	1/2" (ø 12,7 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201505109	Micro Tee 3/4" 316L Single melt 0,25µm UHP Micro fitting Welding Tee 3/4" (19,05 x 1,65) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated 3.1 Certificate: Yes Alternative products Alternative products Loading...	3/4" (ø 19,05 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201605201	Micro Tee 1/8" 316L Single melt 0,13µm UHP Micro fitting Welding Tee 1/8" (3,18 x 0,70) 316L Double melt Internal surface Ra ≤ 0,13µm Electro polished (EP) 3.1 Certificate: Yes	1/8" (ø 3,18 mm)	316L Double melt	Ra ≤ 0,13µm	Electro polished (EP)
7201605203	Micro Tee 1/4" 316L Single melt 0,13µm UHP Micro fitting Welding Tee 1/4" (6,35 x 0,89) 316L Double melt Internal surface Ra ≤ 0,13µm Electro polished (EP) 3.1 Certificate: Yes	1/4" (ø 6,35 mm)	316L Double melt	Ra ≤ 0,13µm	Electro polished (EP)
7201605205	Micro Tee 3/8" 316L Single melt 0,13µm UHP Micro fitting Welding Tee 3/8" (9,53 x 0,89) 316L Double melt Internal surface Ra ≤ 0,13µm Electro polished (EP) 3.1 Certificate: Yes	3/8" (ø 9,53 mm)	316L Double melt	Ra ≤ 0,13µm	Electro polished (EP)
7201605207	Micro Tee 1/2" 316L Single melt 0,13µm UHP Micro fitting Welding Tee 1/2" (12,7 x 1,24) 316L Double melt Internal surface Ra ≤ 0,13µm Electro polished (EP) 3.1 Certificate: Yes	1/2" (ø 12,7 mm)	316L Double melt	Ra ≤ 0,13µm	Electro polished (EP)
7201605209	Micro Tee 3/4" 316L Single melt 0,13µm UHP Micro fitting Welding Tee 3/4" (19,05 x 1,65) 316L Double melt Internal surface Ra ≤ 0,13µm Electro polished (EP) 3.1 Certificate: Yes	3/4" (ø 19,05 mm)	316L Double melt	Ra ≤ 0,13µm	Electro polished (EP)
