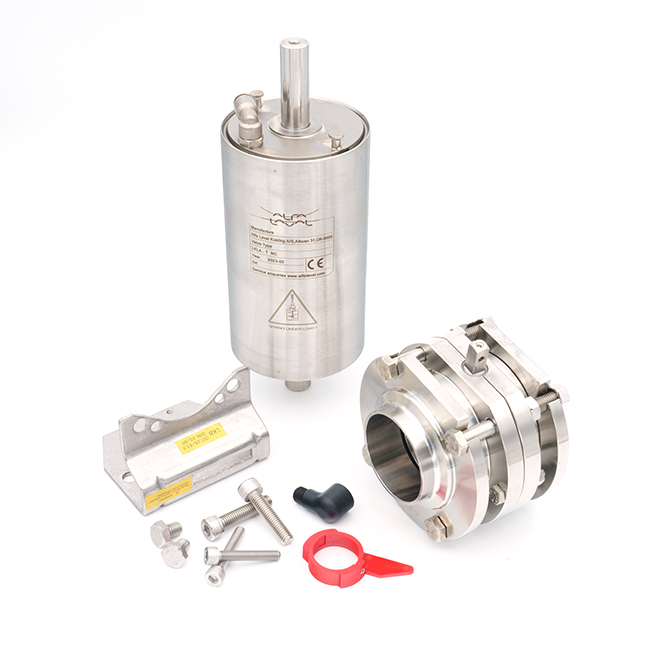

Product information
Alfa Laval butterfly valve LKB-F
Flange / Flange
DN25 (29,00) 1.4404 (316L)
EPDM
Including LKLA-T actuator
Air open / air closed
Stainless steel 304
Prepared for control unit: yes
Properties
| Dimensions: | DN25 (ø 29 mm) |
|---|---|
| Material type: | 316 (L) |
| Connection: | Flange / Flange |
| Elastomer: | EPDM |
Product information
| Weight | 8.6 kg |
|---|

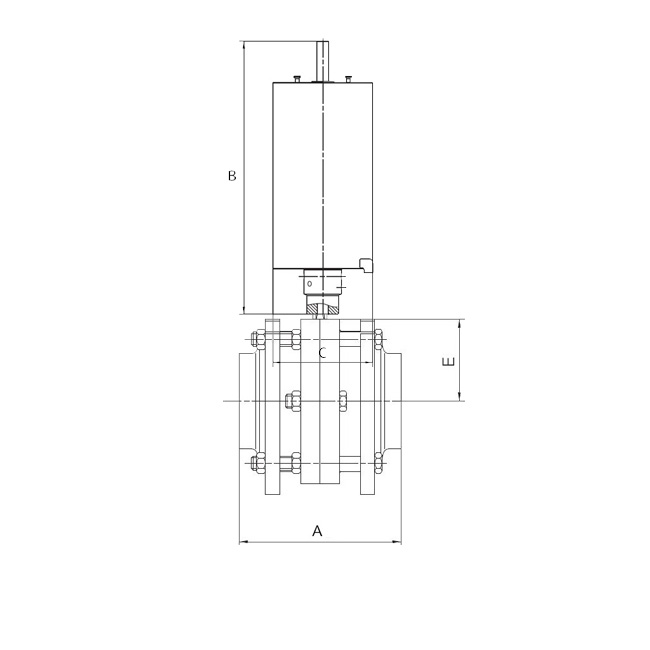

Dimensions
| Dimension A | 83 |
|---|---|
| Dimension B | 236,1 |
| Dimension C | 85 |
| Dimension D | |
| Dimension E | 33,3 |
Mount br LKB(F) 25-63,5MM
Alfa Laval part for LKB(F) valve
Bracket LKLA / LKLA-T Ø85
DN25 - DN50 / 1" - 2,5"
Stainless steel 304
Act LKLA-T A/A 85mm+kopp DN25-50
Alfa Laval actuator LKLA-T Ø85mm
Butterfly valve LKB(F)
DN25 - DN50 / 1" - 2,5"
Including coupling
Air open / air closed
Stainless steel 304
Prepared for indication: no
Prepared for control unit: yes
LKB-F F/F DN25 -/- HO EPDM 316
Alfa Laval butterfly valve LKB-F
Flange / Flange
DN25 (29,00) 1.4404 (316L)
EPDM
Excluding handle
