Product information
Alfa Laval butterfly valve LKB-2
Male part / Liner nut
DN40 (41,00) 1.4307 (304L)
EPDM
Including LKLA actuator
Air open / air closed
Stainless steel 304
Prepared for control unit: no
Properties
| Dimensions: | DN40 (ø 41 mm) |
|---|---|
| Material type: | 304 (L) |
| Connection: | Thread / Liner |
| Elastomer: | EPDM |
Product information
| Weight | 4.3 kg |
|---|---|
| Custom tariff code | 84818085 |

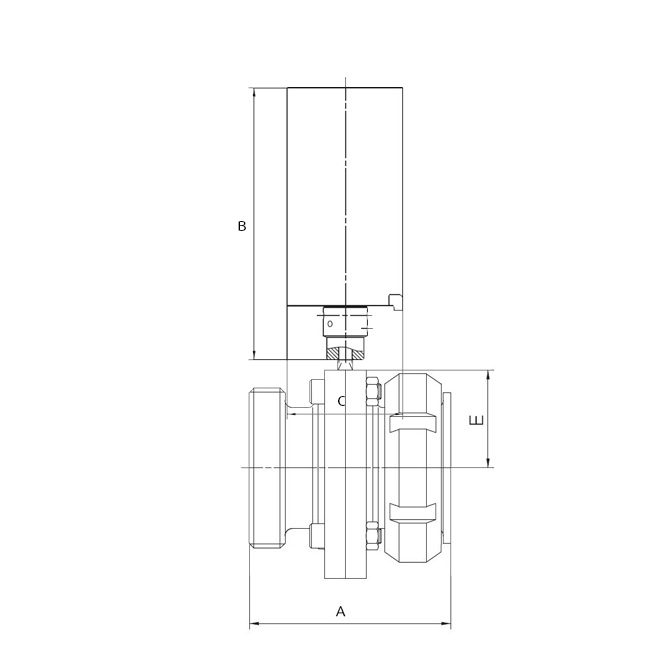

Dimensions
| Dimension A | 86,5 |
|---|---|
| Dimension B | 184,5 |
| Dimension C | 85 |
| Dimension D | |
| Dimension E | 37,7 |
Act LKLA A/A 85mm+kopp 1"/2,5"
Alfa Laval actuator LKLA Ø85mm
Butterfly valve LKB(F)
DN25 - DN50 / 1" - 2,5"
Including coupling
Air open / air closed
Stainless steel 304
Prepared for indication: no
Prepared for control unit: no
Mount br LKB(F) 25-63,5MM
Alfa Laval part for LKB(F) valve
Bracket LKLA / LKLA-T Ø85
DN25 - DN50 / 1" - 2,5"
Stainless steel 304
LKB M/L DN40 -/- HO EPDM 304
Alfa Laval butterfly valve LKB-2
Male part / Liner nut
DN40 (41,00) 1.4307 (304L)
EPDM
Excluding handle
