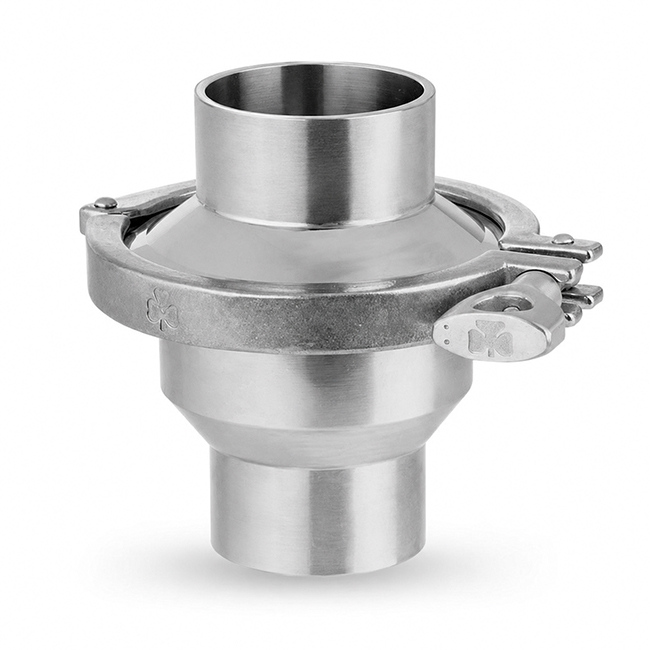

Alfa Laval LKC Ultra Pure
Applying the Alfa Laval LKC Ultra Pure
In addition to the Alfa Laval check valve LKC-2 SKS offers the LKC Ultra Pure non return valve incorporated in the program specifically for hygienic applications such as the pharmaceutical industry. The Alfa Laval non return valve has the same effect as the LKC-2. Unlike the LKC-2 is the LKC UltraPure comes with all necessary documentation:
- 3.1 certificate
- FDA and USP klasse VI
- TSE
- ID Finish report
| Articlenr. | Description | Dimensions | Connection | Elastomer | Stock |
|---|---|---|---|---|---|
|
32639307AL
|
Non-returnvalve Alfa LavalLKC-UP (Ultra -Pure)Weld / Weld DN32 (35)1.4404 (316L) EPDM
3.1 Certificate: Yes |
DN32 (ø 35 mm)
|
Weld / Weld
|
EPDM
|
|
|
32639308AL
|
Non-returnvalve Alfa LavalLKC-UP (Ultra -Pure)Weld / Weld 1,5" (38,1)1.4404 (316L) EPDM
3.1 Certificate: Yes |
1,5" (ø 38,1 mm)
|
Weld / Weld
|
EPDM
|
|
|
32639311AL
|
Non-returnvalve Alfa LavalLKC-UP (Ultra -Pure)Weld / Weld DN50 (53)1.4404 (316L) EPDM
3.1 Certificate: Yes |
DN50 (ø 53 mm)
|
Weld / Weld
|
EPDM
|
|
|
32639314AL
|
Non-returnvalve Alfa LavalLKC-UP (Ultra -Pure)Weld / Weld 3" (76,1)1.4404 (316L) EPDM
3.1 Certificate: Yes |
3" (ø 76,1 mm)
|
Weld / Weld
|
EPDM
|
|
|
32639369AL
|
Non-returnvalve Alfa LavalLKC-UP (Ultra -Pure)Clamp / Clamp 1,5" (38,1)1.4404 (316L) EPDM
3.1 Certificate: Yes |
1,5" (ø 38,1 mm)
|
Clamp / Clamp
|
EPDM
|
|
|
32639370AL
|
Non-returnvalve Alfa LavalLKC-UP (Ultra -Pure)Clamp / Clamp 2" (50,8)1.4404 (316L) EPDM
3.1 Certificate: Yes |
2" (ø 50,8 mm)
|
Clamp / Clamp
|
EPDM
|
|
|
32639371AL
|
Non-returnvalve Alfa LavalLKC-UP (Ultra -Pure)Clamp / Clamp 3" (76,1)1.4404 (316L) EPDM
3.1 Certificate: Yes |
3" (ø 76,1 mm)
|
Clamp / Clamp
|
EPDM
|
|
|
32639377AL
|
Non-returnvalve Alfa LavalLKC-UP (Ultra -Pure)Clamp / Clamp DN100 (104)1.4404 (316L) EPDM
3.1 Certificate: Yes |
DN100 (ø 104 mm)
|
Clamp / Clamp
|
EPDM
|
|
|
32649365AL
|
Non-returnvalve Alfa LavalLKC-UP (Ultra -Pure)Clamp / Clamp DN25 (29)1.4404 (316L) FPM (Viton)
3.1 Certificate: Yes |
DN25 (ø 29 mm)
|
Clamp / Clamp
|
FPM
|
|
|
32649369AL
|
Non-returnvalve Alfa LavalLKC-UP (Ultra -Pure)Clamp / Clamp DN40 (41)1.4404 (316L) FPM (Viton)
3.1 Certificate: Yes |
DN40 (ø 41 mm)
|
Clamp / Clamp
|
FPM
|
|
|
32649370AL
|
Non-returnvalve Alfa LavalLKC-UP (Ultra -Pure)Clamp / Clamp DN40 (41)1.4404 (316L) FPM (Viton)Ra < 0,5µm
3.1 Certificate: Yes |
DN40 (ø 41 mm)
|
Clamp / Clamp
|
FPM
|
|
|
32649373AL
|
Non-returnvalve Alfa LavalLKC-UP (Ultra -Pure)Clamp / Clamp DN65 (70)1.4404 (316L) FPM (Viton)
3.1 Certificate: Yes |
DN65 (ø 70 mm)
|
Clamp / Clamp
|
FPM
|
|
Materials | |
| Product wetted steel parts | 316L |
| Other steel parts | 304 |
| Product wetted elastromers | EPDM / FPM |
| Surface | Ra<0.8µm |
| Connections Weld ends | ISO 2037 / series A/DIN |
| Connections Clamp ends | ISO 2037 / series A/DIN |
Technical data | |
| Max. temperature | 140°C (EPDM) / 180°C (FPM) |
| Min. temperature | -10°C |
