Product information
M&S butterfly valve SV04
Flange / Flange
4" (101,60) 1.4404 (316L)
HNBR
Excluding handle
Properties
| Dimensions: | 4" (ø 101,6 mm) |
|---|---|
| Material type: | 316 (L) |
| Connection: | Flange / Flange |
| Elastomer: | HNBR |
Product information
| Weight | 4.8 kg |
|---|

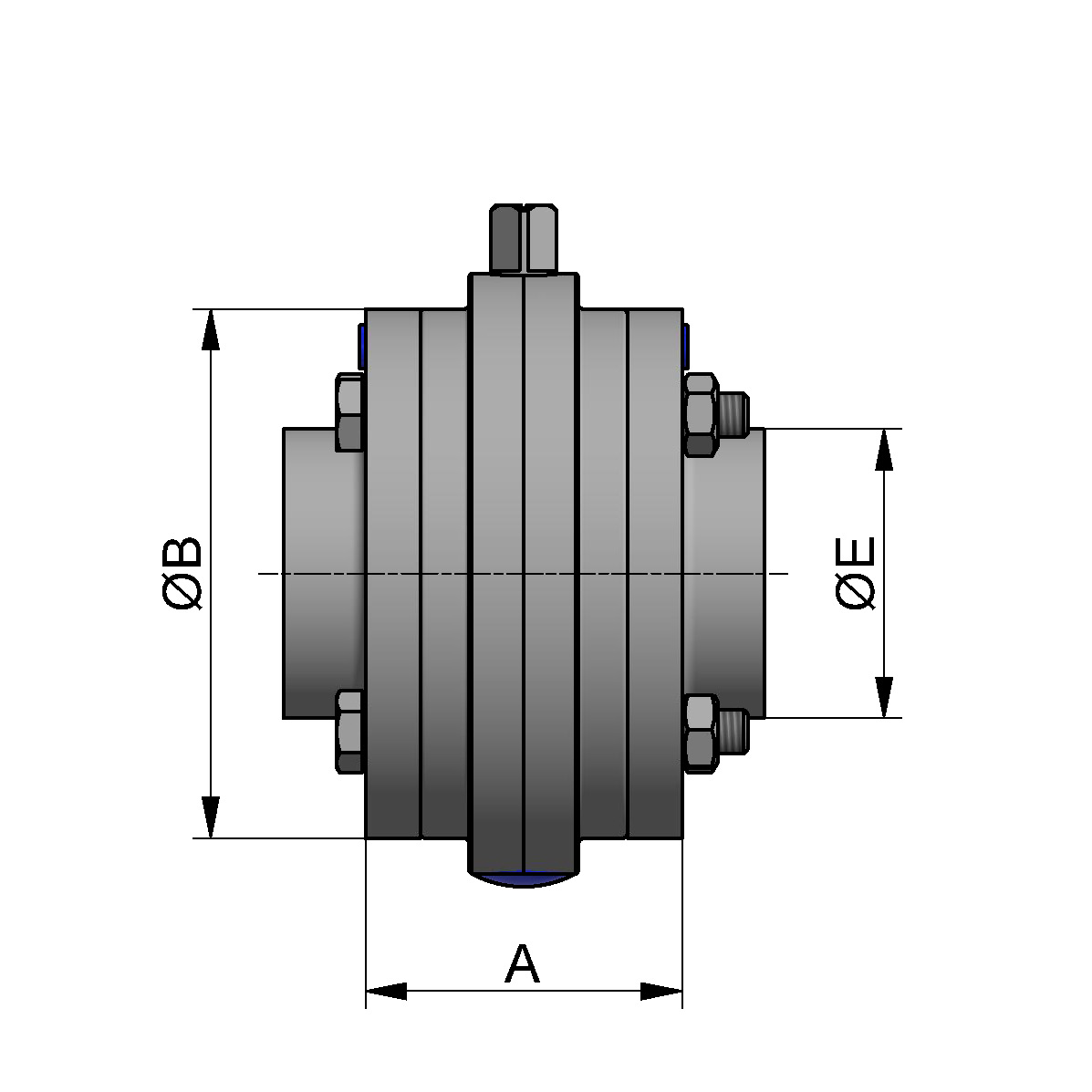

Dimensions
| Dimension A | 88,0 |
|---|---|
| Dimension B | 162,0 |
| Dimension C | |
| Dimension D | |
| Dimension E | 101,6 |
Mount br MS DN15-100 SV04 F/F
M&S bracket
Butterfly valve
SV04 DN15-100 / 1"-4" Flange / Flange
Actuator PAMS-0 & PAMS-1
Prepared for 2 x M12 indication
Stainless steel 304
Handle SV04 DN65-100/2,5"-4"
M&S handle HB04
Butterfly valve
SV04 DN65-100 / 2,5"-4"
Plastic sleeve, plastic ball
2-Steps
Act MS PO AOSC PAMS-1
M&S actuator
PAMS-1 DN15-100 / 1"-4"
Butterfly valve SV04 DN15-100 / 1"-4"
Butterfly valve BaseCom DN25-100
Ball valve DN25 -DN50
LSV07 DN25-65 / 1"-2,5"
Air open / spring closed
Stainless steel 304
Prepared for indication: no
Prepared for control unit: yes
Switch cam MS DN15-100 type 04
Butterfly valve part SV04
Switch cam M12x1
NW15-100 PAMS 0+1 L/V en L/L
