Product information
M&S butterfly valve SV04
Flange / Flange
4" (101,60) 1.4307 (304L)
MVQ (Siliconen)
Including actuator PAMS-1
Air open / air closed
Stainless steel 304
Prepared for indication: yes, M12
Prepared for control unit: yes
Properties
| Dimensions: | 4" (ø 101,6 mm) |
|---|---|
| Material type: | 304 (L) |
| Connection: | Flange / Flange |
| Elastomer: | MVQ (Silicone) |
Product information
| Weight | 8.71 kg |
|---|
Dimensions
| Dimension A | 281,0 |
|---|---|
| Dimension B | |
| Dimension C | |
| Dimension D | |
| Dimension E |

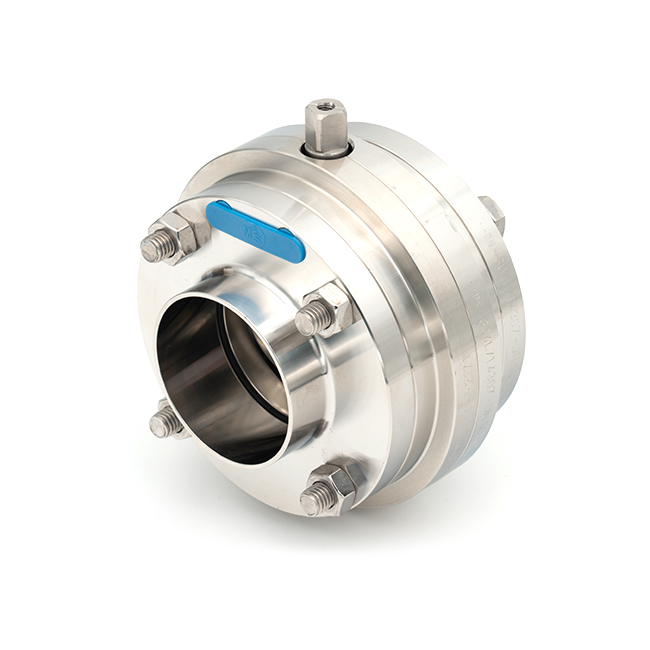

SV04 F/F 4" -/- HO MVQ 304
M&S butterfly valve SV04
Flange / Flange
4" (101,60) 1.4307 (304L)
MVQ (Siliconen)
Excluding handle
Mount br MS DN15-100 SV04 F/F
M&S bracket
Butterfly valve
SV04 DN15-100 / 1"-4" Flange / Flange
Actuator PAMS-0 & PAMS-1
Prepared for 2 x M12 indication
Stainless steel 304
Act MS PO AOAC PAMS 1 DN15-100
M&S actuator
PAMS-1 DN15-100 / 1"-4"
Butterfly valve SV04 DN15-100 / 1"-4"
Butterfly valve BaseCom DN25-100
Ball valve DN25 -DN50
LSV07 DN25-65 / 1"-2,5"
Air open / air closed
Stainless steel 304
Prepared for indication: no
Prepared for control unit: yes
Switch cam MS DN15-100 type 04
Butterfly valve part SV04
Switch cam M12x1
NW15-100 PAMS 0+1 L/V en L/L
