Product information

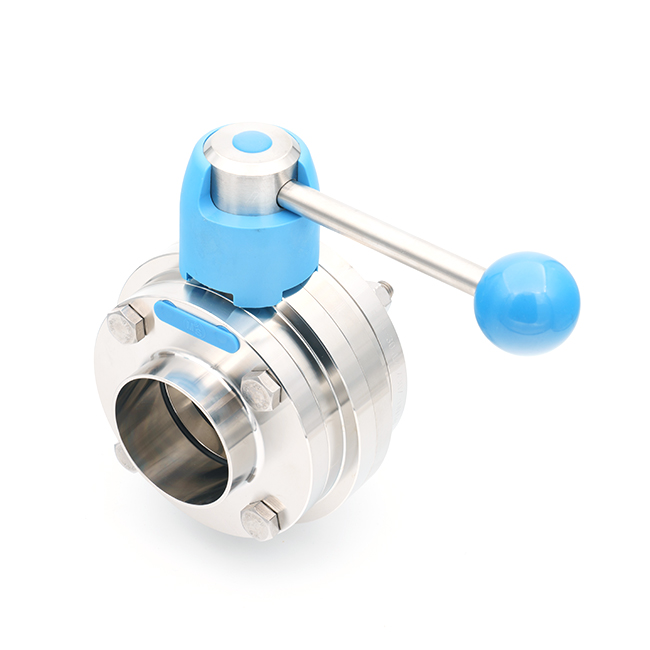

M&S butterfly valve SV04
Flange / Flange
DN20 (23) 1.4307 (304L)
EPDM
Including standard handle
Plastic sleeve, plastic ball
Prepared for indication: no
Properties
| Dimensions: | DN20 (ø 23 mm) |
|---|---|
| Material type: | 304 (L) |
| Connection: | Flange / Flange |
| Elastomer: | EPDM |
Product information
| Weight | 1.65 kg |
|---|

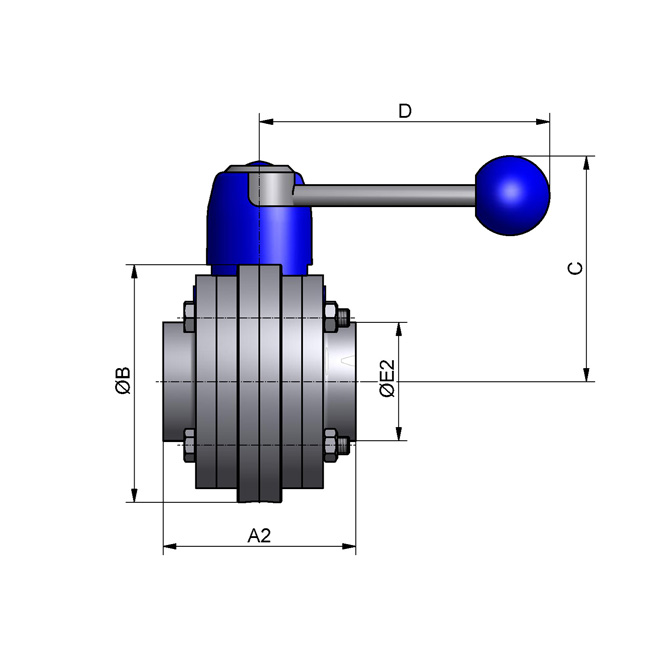

Dimensions
| Dimension A | 78,0 |
|---|---|
| Dimension B | 87,0 |
| Dimension C | 89,0 |
| Dimension D | 122,0 |
| Dimension E | 23,0 |
