Product information
M&S butterfly valve SV04
Male part / Liner nut
DN40 (41) 1.4404 (316L)
MVQ (Siliconen)
Excluding handle
Properties
| Dimensions: | DN40 (ø 41 mm) |
|---|---|
| Material type: | 316 (L) |
| Connection: | Thread / Liner |
| Elastomer: | MVQ (Silicone) |
Product information
| Weight | 1.52 kg |
|---|

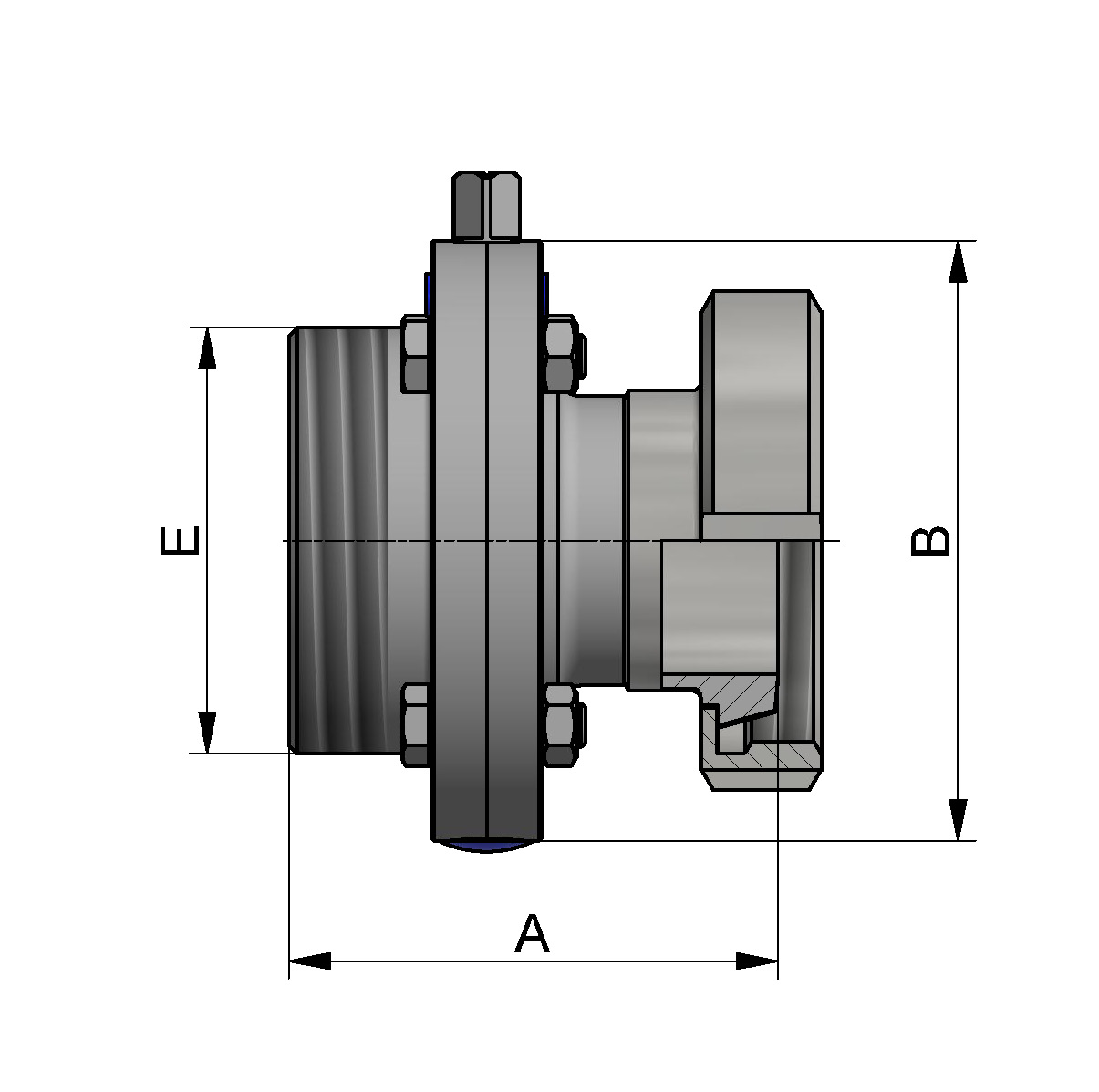

Dimensions
| Dimension A | 87,0 |
|---|---|
| Dimension B | 97,0 |
| Dimension C | |
| Dimension D | |
| Dimension E | Rd65x1/6 |
