Product information

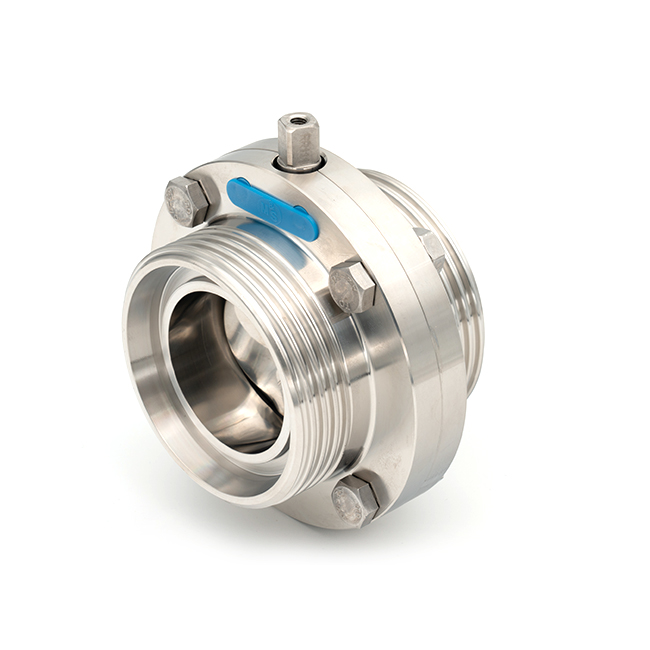

M&S butterfly valve SV04
Male part / Male part
DN150 (154) 1.4404 (316L)
MVQ (Siliconen)
Excluding handle
Properties
| Dimensions: | DN150 (ø 154 mm) |
|---|---|
| Material type: | 316 (L) |
| Connection: | Thread / Thread |
| Elastomer: | MVQ (Silicone) |
Product information
| Weight | 10.3 kg |
|---|---|
| Custom tariff code | 84818085 |
Dimensions
| Dimension A | 124,0 |
|---|---|
| Dimension B | 231,0 |
| Dimension C | |
| Dimension D | |
| Dimension E | Rd190x1/4 |
Mount br MS DN125-150
M&S bracket
Butterfly valve SV04 DN125-150
Actuator PAMS-2
Prepared for 2 x M12 indication
Stainless steel 304
Act MS PO AOSC PAMS-2 DN125-200
M&S actuator
PAMS-2 DN125-200
Butterfly valve SV04 DN125-200
Ball valve DN65 -DN100
LSV07 DN80-150 / 3"-4"
Air open / spring closed
Stainless steel 304
Prepared for indication: no
Prepared for control unit: yes
Handle SV04 DN125/150
M&S handle HB04
Butterfly valve SV04 DN125-150
Plastic sleeve, plastic ball
2-Positions
Switch cam MS DN125-150 type04
Butterfly valve part SV04
Switch cam M12x1
DN125-150 PAMS 2 L/V en L/L
