KEOFITT Basix (single port)

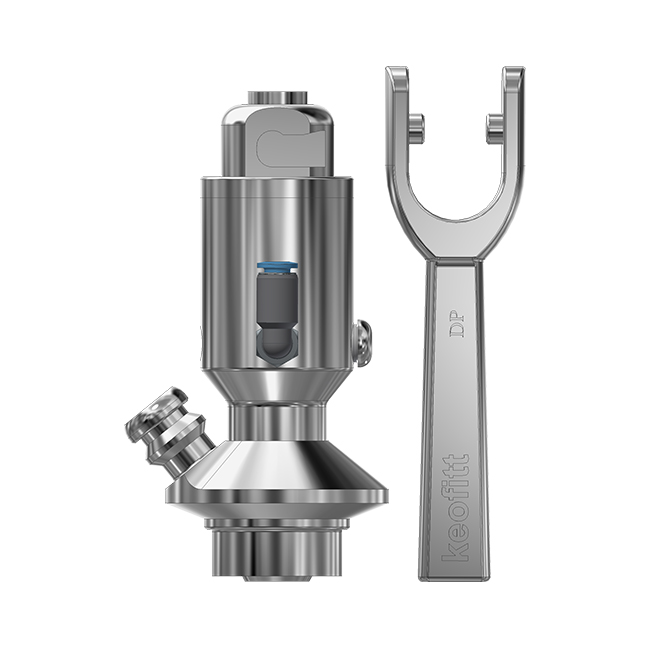

KEOFITT® BASIX™ Sampling Valve
The KEOFITT® BASIX™ Sampling Valve is part of our product line designed for process CIP-able sampling valves suited for less demanding applications, eliminating the need for a separate inlet for sterilizing or sanitizing media.
This valve is ideal for sampling low viscosity products with viscosities ranging from 0-100 cP and particles up to 1.5 mm in diameter.
The BASIX™ valve is perfect for simple, hygienic sampling across all industries for products such as:
- Water
- Milk
- Perfume
- Fruit Juice
Available in both manual and pneumatic versions, this valve is offered as a complete unit, including the valve body and valve head.
You can choose from Silicone, EPDM, or PTFE membranes.
| Articlenr. | Description | Part | Connection | I/O connections | Operating | Stock |
|---|---|---|---|---|---|---|
|
KE450141PTFE
|
KEOFITT sampling valve complete
Type Basix - Tank Ø28mm
I/O connection(s):
1x Hose piece (Quick coupling)
1.4404 (316L) PTFE
Manual operated
Turn knob
|
Valve complete
|
Weld
|
Hose piece (Quick coupling)
|
Turnknob
|
|
|
KE451141E
|
KEOFITT sampling valve complete
Type Basix - Tube Ø29mm
I/O connection(s):
1x Hose piece (Quick coupling)
1.4404 (316L) EPDM
Manual operated
Turn knob
|
Valve complete
|
Weld
|
Hose piece (Quick coupling)
|
Turnknob
|
|
|
KE451141PTFE
|
KEOFITT sampling valve complete
Type Basix - Tube Ø29mm
I/O connection(s):
1x Hose piece (Quick coupling)
1.4404 (316L) PTFE
Manual operated
Turn knob
|
Valve complete
|
Weld
|
Hose piece (Quick coupling)
|
Turnknob
|
|
|
KE451144
|
KEOFITT sampling valve complete
Type Basix - Tube Ø29mm
I/O connection(s):
1x Hose piece (Quick coupling)
1.4404 (316L) Silicone
Type N - Pneumatic operated
Air open / Spring closed
|
Valve complete
|
Weld
|
Weld 1/2" (12,7x1,65)
|
|
|
|
KE451144PTFE
|
KEOFITT sampling valve complete
Type Basix - Tube Ø29mm
I/O connection(s):
1x Hose piece (Quick coupling)
1.4404 (316L) PTFE
Type N - Pneumatic operated
Air open / Spring closed
|
Valve complete
|
Weld
|
Hose piece (Quick coupling)
|
Pneumatic actuator
|
|
|
KE452141PTFE
|
KEOFITT sampling valve complete
Type Basix - Mini Clamp Ø25mm
I/O connection(s):
1x Hose piece (Quick coupling)
1.4404 (316L) PTFE
Manual operated
Turn knob
|
Valve complete
|
Clamp
|
Clamp 1/2" Ø25
|
Turnknob
|
|
|
KE452241E
|
KEOFITT sampling valve complete
Type Basix - Clamp 1" - 1,5"
I/O connection(s):
1x Hose piece (Quick coupling)
1.4404 (316L) EPDM
Manual operated
Turn knob
|
Valve complete
|
Clamp
|
Hose piece (Quick coupling)
|
Turnknob
|
|
| Articlenr. | Description | Dimension | Elastomer | Stock |
|---|---|---|---|---|
|
32438152AL
|
Membrane KEOFITT M4
For type; 4KAI, BASIX en M4
EPDM
(10 pack)
|
|
|
|
