Welding elbow 90° 1/2" 316L Single melt 0,25µ

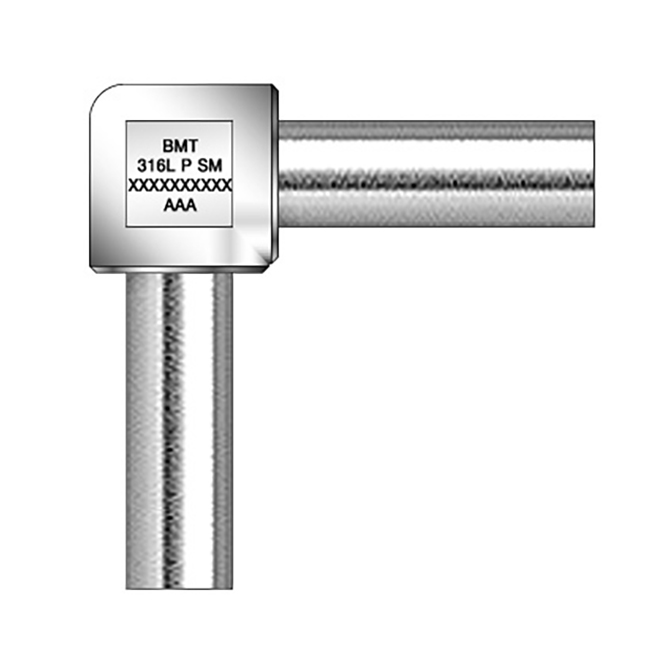

90° Elbow

Name: SKS
Address: Keurweg 2, Waalwijk, 5145 NX, NL
Telephone: +31(0) 88 120 23 00
Price range: €€€

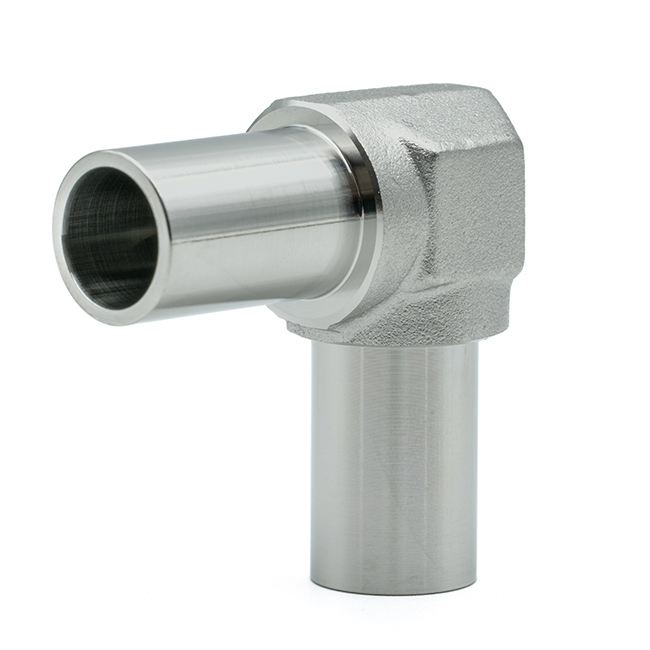

Weld Fittings (90° Elbow)

Weld fittings such as straight pieces, elbows, tees, and crosses that are precisely machined and finished to fit standardized pipe diameters, creating strong and reliable connections.

Specifications:

Sizes: 1/8” – 1”
Material: 316L, 316L VIM/VAR (Double Melt) (product contact parts)
Surface Finish: Ra ≤ 0.25µm standard passivated, or Ra ≤ 0.13µm electropolished
Custom versions available on request
The fittings are cleaned and packaged under cleanroom conditions. Additionally, they are suitable for processing with orbital welding equipment.

Certificates:
MTR (Mill Test Report) or 3.1 certificate according to EN 10204 (product contact parts)

Read more Read less

Log in or create an account to see prices and stock.

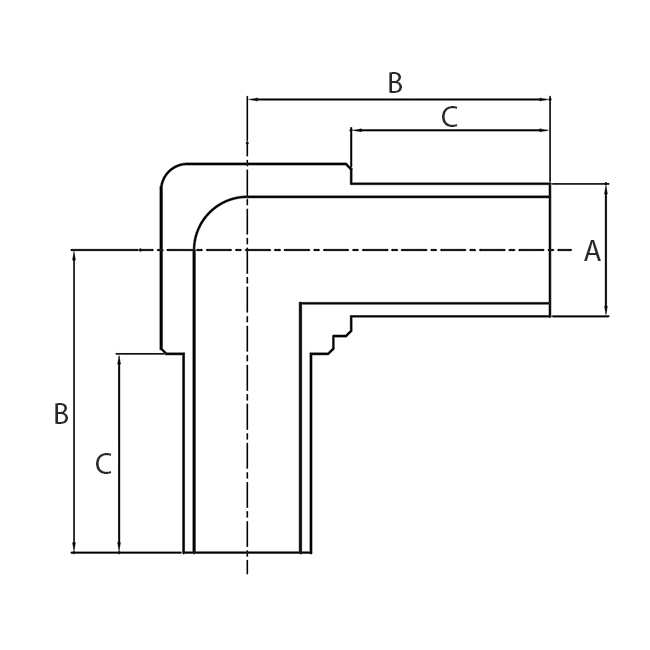

Articlenr.	Description	Dimensions	Material type	Internal surface	External
7201509103	Welding elbow 90° 1/4" 316L Single melt 0,25µ UHP Forged fitting Welding Elbow 90° 1/4" (6,35 x 0,89) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated	1/4" (ø 6,35 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201509105	Welding elbow 90° 3/8" 316L Single melt 0,25µ UHP Forged fitting Welding Elbow 90° 3/8" (9,53 x 0,89) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated	3/8" (ø 9,53 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201509107	Welding elbow 90° 1/2" 316L Single melt 0,25µ UHP Forged fitting Welding Elbow 90° 1/2" (12,7 x 1,24) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated	1/2" (ø 12,7 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201509109	Welding elbow 90° 3/4" 316L Single melt 0,25µ UHP Forged fitting Welding Elbow 90° 3/4" (19,05 x 1,65) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated	3/4" (ø 19,05 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201509111	Welding elbow 90° 1" 316L Single melt 0,25µ UHP Forged fitting Welding Elbow 90° 1" (25,4 x 1,65) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated	1" (ø 25,4 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201509203	Welding elbow 90° 1/4" 316L Single melt 0,13µ UHP Forged fitting Welding Elbow 90° 1/4" (6,35 x 0,89) 316L Single melt Internal surface Ra ≤ 0,13µm Electro polished (EP)	1/4" (ø 6,35 mm)	316L Single melt	Ra ≤ 0,13µm	Electro polished (EP)
7201509205	Welding elbow 90° 3/8" 316L Single melt 0,13µ UHP Forged fitting Welding Elbow 90° 3/8" (9,53 x 0,89) 316L Single melt Internal surface Ra ≤ 0,13µm Electro polished (EP)	3/8" (ø 9,53 mm)	316L Single melt	Ra ≤ 0,13µm	Electro polished (EP)
7201509207	Welding elbow 90° 1/2" 316L Single melt 0,13µ UHP Forged fitting Welding Elbow 90° 1/2" (12,7 x 1,24) 316L Single melt Internal surface Ra ≤ 0,13µm Electro polished (EP)	1/2" (ø 12,7 mm)	316L Single melt	Ra ≤ 0,13µm	Electro polished (EP)
7201509209	Welding elbow 90° 3/4" 316L Single melt 0,13µ UHP Forged fitting Welding Elbow 90° 3/4" (19,05 x 1,65) 316L Single melt Internal surface Ra ≤ 0,13µm Electro polished (EP)	3/4" (ø 19,05 mm)	316L Single melt	Ra ≤ 0,13µm	Electro polished (EP)
7201509211	Welding elbow 90° 1" 316L Single melt 0,13µ UHP Forged fitting Welding Elbow 90° 1" (25,4 x 1,65) 316L Single melt Internal surface Ra ≤ 0,13µm Electro polished (EP)	1" (ø 25,4 mm)	316L Single melt	Ra ≤ 0,13µm	Electro polished (EP)
