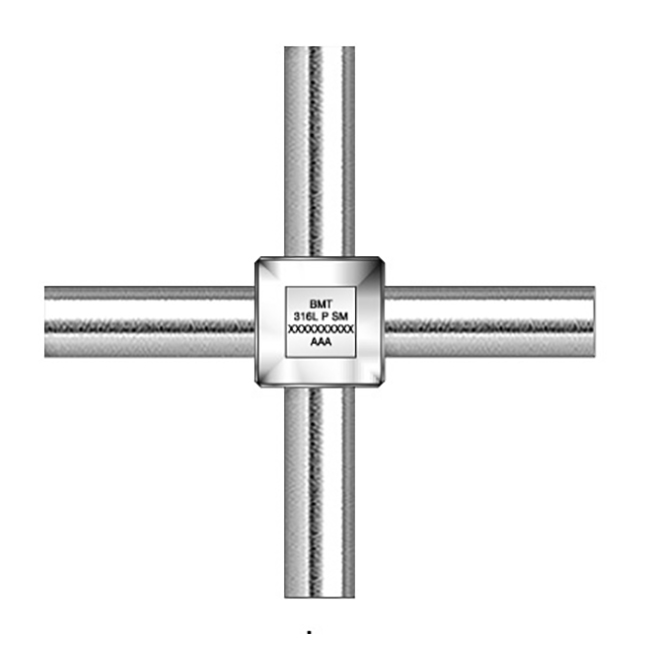

Weld Fittings (Cross)

Weld fittings such as straight pieces, elbows, tees, and crosses that are precisely machined and finished to fit standardized pipe diameters, creating strong and reliable connections.

Specifications:

Sizes: 1/8” – 1”
Material: 316L, 316L VIM/VAR (Double Melt) (product contact parts)
Surface Finish: Ra ≤ 0.25µm standard passivated, or Ra ≤ 0.13µm electropolished
Custom versions available on request
The fittings are cleaned and packaged under cleanroom conditions. Additionally, they are suitable for processing with orbital welding equipment.

Certificates:
MTR (Mill Test Report) or 3.1 certificate according to EN 10204 (product contact parts)

Read more Read less

Log in or create an account to see prices and stock.

Articlenr.	Description	Dimensions	Material type	Internal surface	External
7201513103	Cross 1/4" 316L Single melt 0,25µ UHP Forged fitting Welding cross 1/4" (6,35 x 0,89) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated	1/4" (ø 6,35 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201513105	Cross 3/8" 316L Single melt 0,25µ UHP Forged fitting Welding cross 3/8" (9,53 x 0,89) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated	3/8" (ø 9,53 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201513107	Cross 1/2" 316L Single melt 0,25µ UHP Forged fitting Welding cross 1/2" (12,7 x 1,24) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated	1/2" (ø 12,7 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201513109	Cross 3/4" 316L Single melt 0,25µ UHP Forged fitting Welding cross 3/4" (19,05 x 1,65) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated	3/4" (ø 19,05 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201513111	Cross 1" 316L Single melt 0,25µ UHP Forged fitting Welding cross 1" (25,4 x 1,65) 316L Single melt Internal surface Ra ≤ 0,25µm Standard pasivated	1" (ø 25,4 mm)	316L Single melt	Ra ≤ 0,25µm	Standard pasivated
7201513203	Cross 1/4" 316L Single melt 0,13µ UHP Forged fitting Welding cross 1/4" (6,35 x 0,89) 316L Single melt Internal surface Ra ≤ 0,13µm Electro polished (EP)	1/4" (ø 6,35 mm)	316L Single melt	Ra ≤ 0,13µm	Electro polished (EP)
7201513205	Cross 3/8" 316L Single melt 0,13µ UHP Forged fitting Welding cross 3/8" (9,53 x 0,89) 316L Single melt Internal surface Ra ≤ 0,13µm Electro polished (EP)	3/8" (ø 9,53 mm)	316L Single melt	Ra ≤ 0,13µm	Electro polished (EP)
7201513207	Cross 1/2" 316L Single melt 0,13µ UHP Forged fitting Welding cross 1/2" (12,7 x 1,24) 316L Single melt Internal surface Ra ≤ 0,13µm Electro polished (EP)	1/2" (ø 12,7 mm)	316L Single melt	Ra ≤ 0,13µm	Electro polished (EP)
7201513209	Cross 3/4" 316L Single melt 0,13µ UHP Forged fitting Welding cross 3/4" (19,05 x 1,65) 316L Single melt Internal surface Ra ≤ 0,13µm Electro polished (EP)	3/4" (ø 19,05 mm)	316L Single melt	Ra ≤ 0,13µm	Electro polished (EP)
7201513211	Cross 1" 316L Single melt 0,13µ UHP Forged fitting Welding cross 1" (25,4 x 1,65) 316L Single melt Internal surface Ra ≤ 0,13µm Electro polished (EP)	1" (ø 25,4 mm)	316L Single melt	Ra ≤ 0,13µm	Electro polished (EP)
