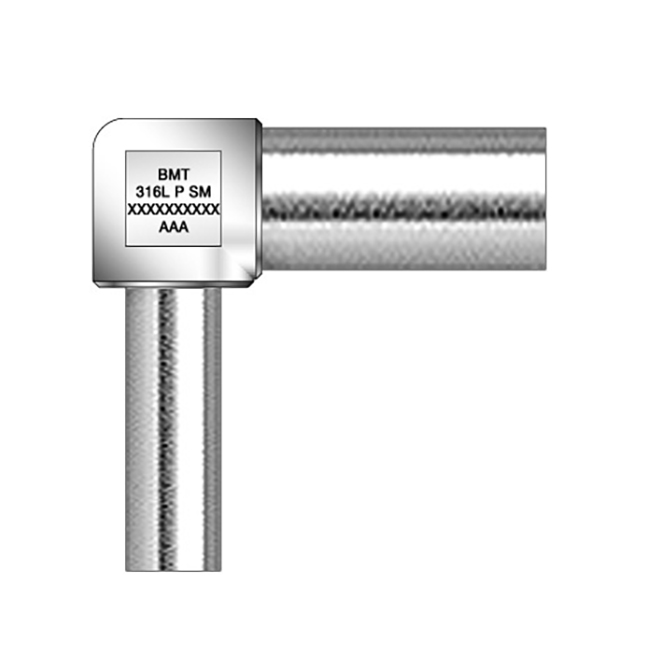

Reducing 90° Elbow
Weld Fittings (Reducing 90° Elbow)
Weld fittings such as straight pieces, elbows, tees, and crosses that are precisely machined and finished to fit standardized pipe diameters, creating strong and reliable connections.
Specifications:
- Sizes: 1/8” – 1”
- Material: 316L, 316L VIM/VAR (Double Melt) (product contact parts)
- Surface Finish: Ra ≤ 0.25µm standard passivated, or Ra ≤ 0.13µm electropolished
- Custom versions available on request
- The fittings are cleaned and packaged under cleanroom conditions. Additionally, they are suitable for processing with orbital welding equipment.
Certificates:
MTR (Mill Test Report) or 3.1 certificate according to EN 10204 (product contact parts)

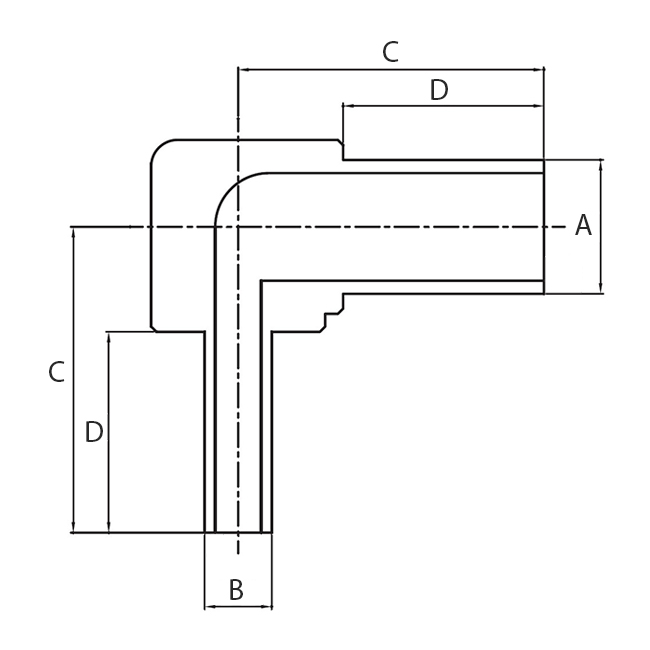

| Articlenr. | Description | Dimensions | Dimensions 2 | Material type | Internal surface | Stock |
|---|---|---|---|---|---|---|
|
7201510105
|
UHP Forged fitting
Reducing welding elbow 90°
3/8"x1/4" (9,53 x 0,89 / 6,35 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
3/8" (ø 9,53 mm)
|
1/4" (ø 6,35 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201510107
|
UHP Forged fitting
Reducing welding elbow 90°
1/2"x1/4" (12,7 x 1,24 / 6,35 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
1/2" (ø 12,7 mm)
|
1/4" (ø 6,35 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201510109
|
UHP Forged fitting
Reducing welding elbow 90°
1/2"x3/8" (12,7 x 1,24 / 9,53 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
1/2" (ø 12,7 mm)
|
3/8" (ø 9,53 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201510111
|
UHP Forged fitting
Reducing welding elbow 90°
3/4"x1/4" (19,05 x 1,65 / 6,35 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
3/4" (ø 19,05 mm)
|
1/4" (ø 6,35 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201510113
|
UHP Forged fitting
Reducing welding elbow 90°
3/4"x3/8" (19,05 x 1,65 / 9,53 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
3/4" (ø 19,05 mm)
|
3/8" (ø 9,53 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201510115
|
UHP Forged fitting
Reducing welding elbow 90°
3/4"x1/2" (19,05 x 1,65 / 12,7 x 1,24)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
3/4" (ø 19,05 mm)
|
1/2" (ø 12,7 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201510117
|
UHP Forged fitting
Reducing welding elbow 90°
1"x1/4" (25,4 x 1,65 / 6,35 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
1" (ø 25,4 mm)
|
1/4" (ø 6,35 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201510119
|
UHP Forged fitting
Reducing welding elbow 90°
1"x1/2" (25,4 x 1,65 / 12,7 x 1,24)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
1" (ø 25,4 mm)
|
1/2" (ø 12,7 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201510121
|
UHP Forged fitting
Reducing welding elbow 90°
1"x3/4" (25,4 x 1,65 / 19,05 x 1,65)
316L Single melt
Internal surface Ra ≤ 0,25µm
Standard pasivated
|
1" (ø 25,4 mm)
|
3/4" (ø 19,07 mm)
|
316L Single melt
|
Ra ≤ 0,25µm
|
|
|
7201510205
|
UHP Forged fitting
Reducing welding elbow 90°
3/8"x1/4" (9,53 x 0,89 / 6,35 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
3/8" (ø 9,53 mm)
|
1/4" (ø 6,35 mm)
|
316L Single melt
|
Ra ≤ 0,13µm
|
|
|
7201510207
|
UHP Forged fitting
Reducing welding elbow 90°
1/2"x1/4" (12,7 x 1,24 / 6,35 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/2" (ø 12,7 mm)
|
1/4" (ø 6,35 mm)
|
316L Single melt
|
Ra ≤ 0,13µm
|
|
|
7201510209
|
UHP Forged fitting
Reducing welding elbow 90°
1/2"x3/8" (12,7 x 1,24 / 9,53 x 0,89)
316L Single melt
Internal surface Ra ≤ 0,13µm
Electro polished (EP)
|
1/2" (ø 12,7 mm)
|
3/8" (ø 9,53 mm)
|
316L Single melt
|
Ra ≤ 0,13µm
|
|
